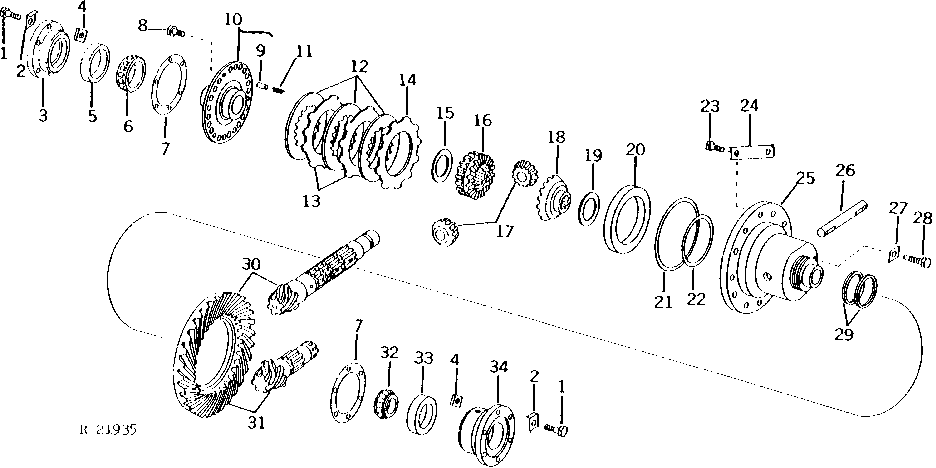

DIFFERENTIAL (TRACTOR SERIAL NO. 091000- ) [02I20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1721	12	CAP SCREW	1/2" X 1-1/2"
2	R26038	12	LOCK PLATE	-
3	R31190	1	BEARING HOUSING W/O BEARING	L.H.
4	14H823	2	NUT	1/2"
5	JD8259	1	Bearing Cup	-
6	JD8954	1	Bearing Cone	-
7	R46323	1	Shim	0.08MM (.003") (SUB FOR R26042)
7	R46324	1	Shim	0.12MM (.005") (SUB FOR R26043)
7	R46325	1	Shim	0.25MM (.010") (SUB FOR R26044)
8	R40236	12	Cap Screw	(SUB FOR R39875) (SUB R116064)
9	34H311	3	Spring Pin	1/4" X 7/8", (SUB FOR R34864 OR R40335)
10	R271076	1	COVER	(MARKED R34800 OR R42505) (SUB FOR AR34901) (SUB R101054 AND (3) 34H311) (SUB FOR AR44614, R101054)
11	R34863	3	SPRING	-
12	AR70154	3	DISK WITH INNER SPLINE	(SUB FOR AR34705)
13	R34858	2	Clutch Plate	-
14	R34857	1	Clutch Plate	-
15	R72587	1	THRUST WASHER	(USE WITH R54180) (SUB FOR R53202, R65741 OR R77145) (SUB R93623)
16	R42448	1	GEAR	(SUB FOR R34854) (SUB R54180, R63477 AND (2) R93623)
17	R42444	2	PINION	(SUB FOR R26035)
18	R42446	1	GEAR	(SUB FOR R26034) (SUB R63477, R54180 AND (2) R93623)
19	R72587	1	THRUST WASHER	(USE WITH R54182) (SUB FOR R53202, R65741 OR R77145) (SUB R93643)
20	R34855	1	PISTON	-
21	R41017	1	WASHER	(SUB FOR R34866)
22	R44328	1	WASHER	(SUB FOR R34865 OR R41016)
23	19H3728	12	SCREW	1/2" X 1-3/16"
24	R26032	6	PLATE	-
25	AR39651	1	HOUSING	(MARKED R34799) (SUB AR101616)
26	R58425	1	SHAFT	(SUB FOR R26033 OR R41903 OR R53740)
27	F3173R	1	LOCK PLATE	-
28	R34862	1	CAP SCREW	-
28	R70236	1	CAP SCREW	(SUB FOR R41050)
29	R34513	2	Ring	-
30	AR33962	1	BEVEL GEAR DRIVE	(MARKED R33062 AND R33243) (MATCHED SET) (SYNCRO-RANGE)
31	AR32465	1	GEAR	(MARKED R33062 AND R33006) (SUB RE171048 USED PART) (MATCHED SET) (POWER SHIFT)
32	JD8159	1	Bearing Cone	-
33	JD8210	1	Bearing Cup	-
34	R34856	1	Bearing Housing W/O Bearing	R.H.
