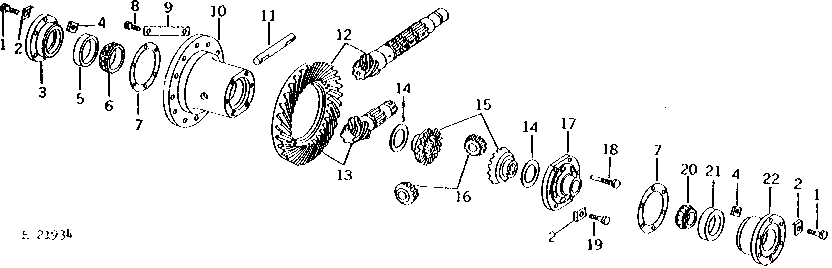

DIFFERENTIAL (LESS DIFFERENTIAL LOCK) [02I17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1721	12	CAP SCREW	1/2" X 1-1/2"
2	R26038	17	LOCK PLATE	-
3	R31190	1	BEARING HOUSING W/O BEARING	L.H.
4	14H823	2	NUT	1/2"
5	JD8259	1	Bearing Cup	-
6	JD8954	1	Bearing Cone	-
7	R46323	1	Shim	0.08MM (.003") (SUB FOR R26042)
7	R46324	1	Shim	0.12MM (.005") (SUB FOR R26043)
7	R46325	1	Shim	0.25MM (.010") (SUB FOR R26044)
8	19H3728	12	SCREW	1/2" X 1-3/16"
9	R26032	6	PLATE	-
10	R31189	1	HOUSING	(SUB AR103363) (ALSO ORDER R34856)
11	R58425	1	SHAFT	(SUB FOR R26033, R41903 OR R53740)
12	AR33962	1	BEVEL GEAR DRIVE	(MATCHED SET) (SYNCRO-RANGE) (MARKED R33062 AND R33243)
13	AR32465	1	GEAR	(MATCHED SET) (POWER SHIFT) (MARKED R33062 AND R33006) (SUB RE171048 USED PART)
14	R72587	2	THRUST WASHER	(USE WITH R54182) (SUB FOR R53202, R65741 OR R77145) (SUB R93623)
15	R42446	2	GEAR	(SUB FOR R26034) (SUB (2) R63477 AND (2) R77145)
16	R42444	2	PINION	(SUB FOR R26035)
17	R31195	1	COVER	-
18	R70236	1	CAP SCREW	(SUB FOR R26037 OR R41050)
19	19H3579	5	Cap Screw	1/2" X 1-3/8"
20	JD8159	1	Bearing Cone	-
21	JD8210	1	Bearing Cup	-
22	R31196	1	BEARING HOUSING W/O BEARING	R.H. (SUB R34856 WHEN AR103363 HAS BEEN INSTALLED)

DIFFERENTIAL (LESS DIFFERENTIAL LOCK) [02I17]
