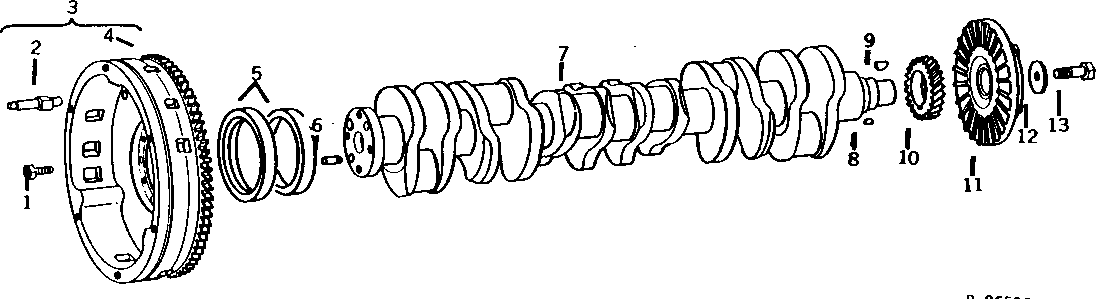

CRANKSHAFT (EARLY DESIGN) AND FLYWHEEL [01B25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3385	4	Cap Screw	1/2" X 1-1/8"
2	R34213	3	DOWEL PIN	(A) (SUB R40731)
2	R40731	3	DOWEL PIN	(A)
2	R32192	3	Dowel Pin	(B)
3	AR40564	1	FLYWHEEL	(A) (C) (MARKED R26720 OR R40726) (SUB FOR AR32246) (165 TEETH)
3	AR53379	1	FLYWHEEL	(B) (C) (MARKED R33530, R40728 OR R49528) (SUB FOR AR34239 OR AR40562) (NO LONGER AVAILABLE) (165 TEETH)
3	AR40565	1	FLYWHEEL	(A) (D) (MARKED R28810 OR R40727) (SUB FOR AR32247) (129 TEETH)
3	AR53380	1	FLYWHEEL	(B) (D) (MARKED R31638, R40729 OR R49529) (SUB FOR AR34238 OR AR40563) (129 TEETH)
4	R26054	1	GEAR	(C) (165 TEETH)
4	R28811	1	Ring Gear	(D) (129 TEETH)
5	RE520036	1	Seal	(SUB FOR RE504363)
5	RE22764	1	Seal	(SUB FOR R26051, AR34682, AR49650, AR63095, RE14953 OR RE17352) (SUB RE504363)
6	R28999	2	DOWEL PIN	(SUB FOR R28999)
7	AR26430	1	CRANKSHAFT	(C) (MARKED R26550) (NO LONGER AVAILABLE)
7	AR26431	1	CRANKSHAFT	(D) (MARKED R26560) (SUB RE63292)
8	26H72	1	Shaft Key	1/8" X 5/8"
9	26H85	1	Shaft Key	1/4" X 1"
10	R26049	1	HELICAL GEAR	-
11	AR58172	1	ABSORBER	(D) (SUB FOR R34364)
11	AR58182	1	ABSORBER	(D) (SUB FOR AR44964) (AIR CONDITIONING)
11	R53031	1	PULLEY	(C) (SUB FOR R34366 OR R47624)
12	R26333	1	Washer	-
13	19H3485	1	Cap Screw	3/8" X 2"

CRANKSHAFT (EARLY DESIGN) AND FLYWHEEL [01B25]

Нет текстового описания
