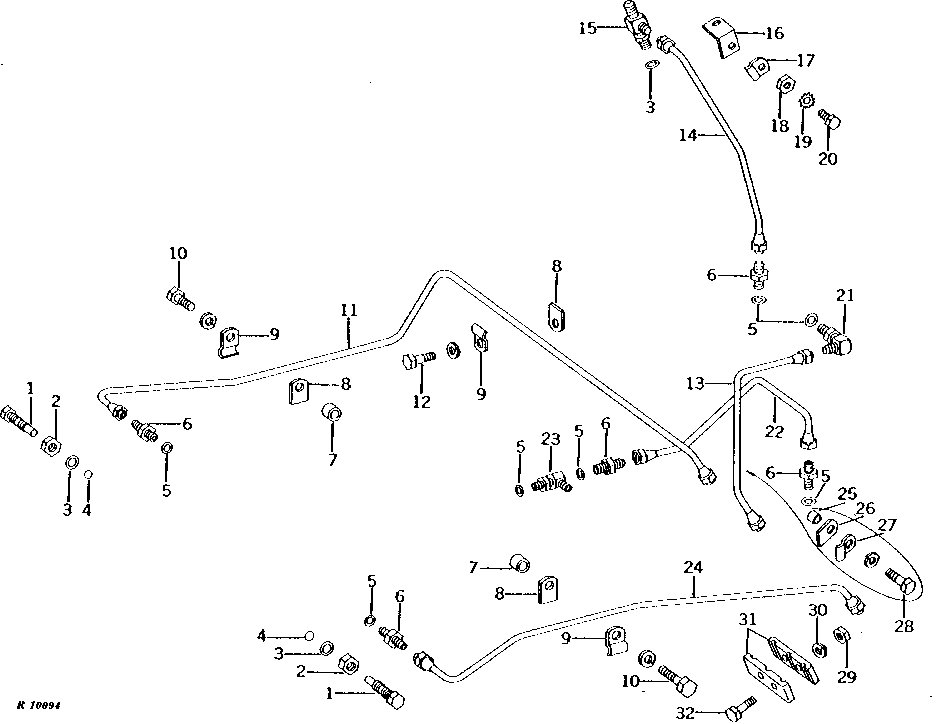

BRAKE OIL LINES (SYNCRO-RANGE) [02K10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27906	2	FITTING PLUG	BLEED VALVE
2	R27296	2	Nut	-
3	R26286	3	O-Ring	-
4	R42849	2	Ball	10MM (3/8") (SUB FOR 405R)
5	R26287	7	O-Ring	-
6	R27527	5	ADAPTER FITTING	-
7	A4669R	2	BUSHING	-
8	R31655	4	STRAP	-
9	R31654	4	CLAMP	-
10	12H304	2	Lock Washer	3/8"
10	19H1732	2	Cap Screw	3/8" X 1-1/4"
11	AR32488	1	HYDRAULIC LINE	L.H. (SUB AR44456, (4) R31654 AND (4) R31655)
11	AR44456	1	OIL LINE	L.H.
12	19H1936	2	Cap Screw	3/8" X 3/4"
12	12H304	2	Lock Washer	3/8"
13	AR32239	1	OIL LINE	(B) LOWER
13	AR39678	1	OIL LINE	(A) LOWER
14	AR32238	1	OIL LINE	UPPER
15	AR30762	1	Tee Fitting	-
16	R34651	1	BRACKET	-
17	R31654	1	CLAMP	-
18	14H785	1	Nut	5/16"
19	12M7032	1	Lock Washer	0.331"
20	19H1813	1	CAP SCREW	5/16" X 5/8"
21	AR26746	1	Elbow Fitting	90°, (SUB FOR AT32335)
22	AR33990	1	OIL LINE	BRAKE RETURN
23	AR33988	1	TEE FITTING	-
24	AR32487	1	OIL LINE	R.H.
25	28H3381	1	Spacer	(A)
26	R31655	1	STRAP	(A)
27	R31654	1	CLAMP	(A)
28	19H2661	1	Cap Screw	(A) 5/16" X 1-3/8"
28	12H303	1	Lock Washer	(A) 5/16"
29	14H785	2	Nut	(B) 5/16"
30	12H303	2	Lock Washer	(B) 5/16"
31	R36086	2	CLAMP	(B)
32	19H1849	2	Cap Screw	(B) 5/16" X 1-1/4"

BRAKE OIL LINES (SYNCRO-RANGE) [02K10]
