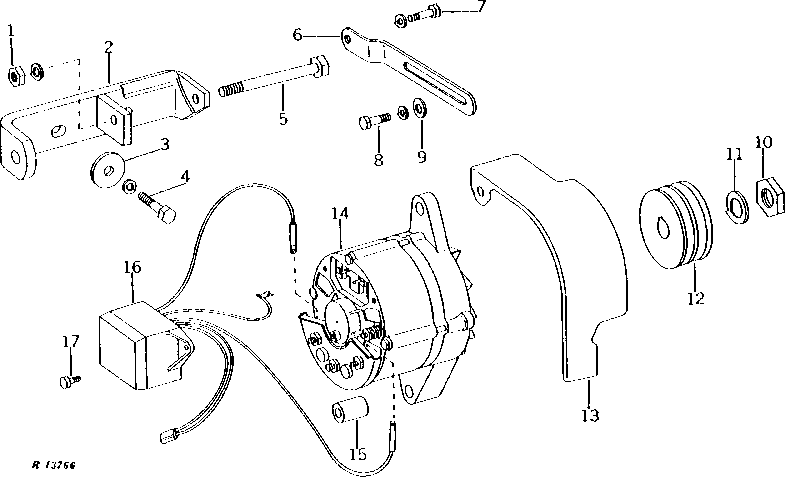

ALTERNATOR, REGULATOR, AND MOUNTING BRACKET (DIESEL)(AIR CONDITIONING) [02C24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	1	Lock Washer	3/8", (NOT REQUIRED W/E55662)
1	E55662	1	Flange Nut	3/8"
2	AR44965	1	BRACKET	-
3	24H1330	2	Washer	15/32" X 1-3/8" X 7/64"
4	19H1821	2	CAP SCREW	7/16" X 1-1/4"
4	12H293	2	Lock Washer	7/16"
5	19H2228	1	Cap Screw	3/8" X 4"
6	R42742	1	STRAP	-
7	19H1900	1	Cap Screw	5/16" X 3/4"
7	12H303	1	Lock Washer	5/16"
8	19H2127	1	Cap Screw	5/16" X 7/8"
8	12H303	1	Lock Washer	5/16"
9	24H1292	1	Washer	11/32" X 3/4" X 0.120"
10	14H866	1	Nut	5/8"
11	12H294	1	Lock Washer	5/8"
12	R43664	1	PULLEY	(NLA)
13	R42753	1	SHIELD	(NLA)
14	AR40419	1	ALTERNATOR	(SUB TY1448) (24-VOLT)(35 AMP)(MOTOROLA)
14	TY1448	1	ALTERNATOR	(SUB FOR AR40419) (24-VOLT)(35 AMP)
14	SE501351	1	ALTERNATOR	(REMAN FOR AR40419)
15	B10121	1	Bushing	(SUB FOR R34969)
16	AR52928	1	VOLTAGE REGULATOR	(24-VOLT) (MOTOROLA) (SUB FOR AR40421)
17	37H201	3	Screw	(SUB FOR R44008)
..	-	1	Part 24	(AR40457 OR AR47666 NO LONGER AVAILABLE)

ALTERNATOR, REGULATOR, AND MOUNTING BRACKET (DIESEL)(AIR CONDITIONING) [02C24]
