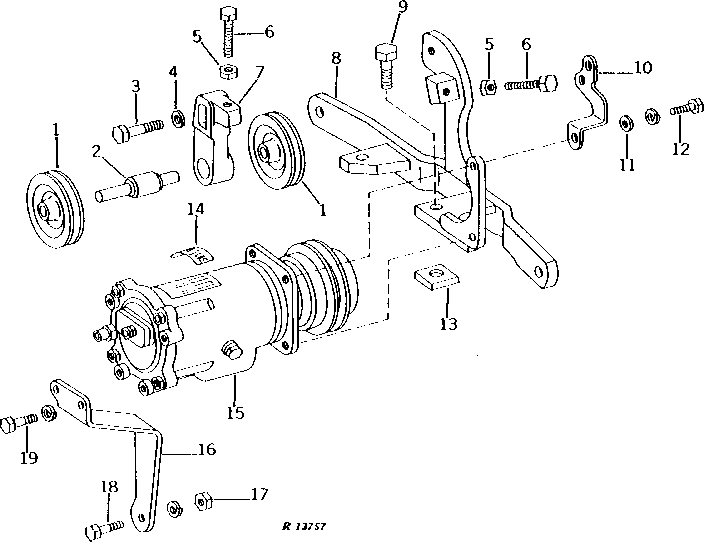

AIR CONDITIONING COMPRESSOR, MOUNTING BRACKETS AND JACKSHAFT (ORIGINAL DESIGN) [04B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R42748	2	PULLEY	(NLA)
2	JD9212	1	BALL BEARING	-
3	19H3265	1	Cap Screw	1/2" X 1-7/8"
4	24H1341	1	Washer	17/32" X 15/16" X 0.060"
5	14H849	2	Nut	7/16"
6	19H2788	2	CAP SCREW	7/16" X 2-1/4"
7	R42747	1	SUPPORT	(NLA)
8	AR44967	1	SUPPORT	FRONT (NLA)
9	19H1756	1	Cap Screw	5/8" X 1-1/2"
10	R42752	1	SUPPORT	(NLA)
11	24H1136	1	Washer	11/32" X 11/16" X 0.065"
12	12M7065	2	Lock Washer	8 MM
12	19M7163	2	Cap Screw	M8 X 25
12	12H303	2	Lock Washer	5/16"
12	19H2529	2	Cap Screw	5/16" X 1"
13	R42826	1	STRAP	(NLA)
14	R42822	1	LABEL	-
15	AR47843	1	COMPRESSOR	(SUB FOR AR44971 OR AR77343) (SUB TY6665, (3) 19M7163, (2) 19M7662, (3) 12M7065, (3) 12M7066 AND 19M7170)
15	AR92109	1	COMPRESSOR	(SUB TY6665)
15	TY6665	1	COMPRESSOR	(SUB FOR TY6601, TY6623 OR TY6628)
15	SE501456	1	COMPRESSOR	(REMAN FOR AR92109 OR TY6665)
16	R42754	1	SUPPORT	REAR (NLA)
17	14H1047	1	Nut	7/16"
17	12H293	1	Lock Washer	7/16"
18	19H1822	1	Cap Screw	7/16" X 1"
19	19H1731	2	Cap Screw	3/8" X 1"
19	12H304	2	Lock Washer	3/8"
19	19M7662	2	Cap Screw	M10 X 30
19	12M7066	2	Lock Washer	10 MM

AIR CONDITIONING COMPRESSOR, MOUNTING BRACKETS AND JACKSHAFT (ORIGINAL DESIGN) [04B07]
