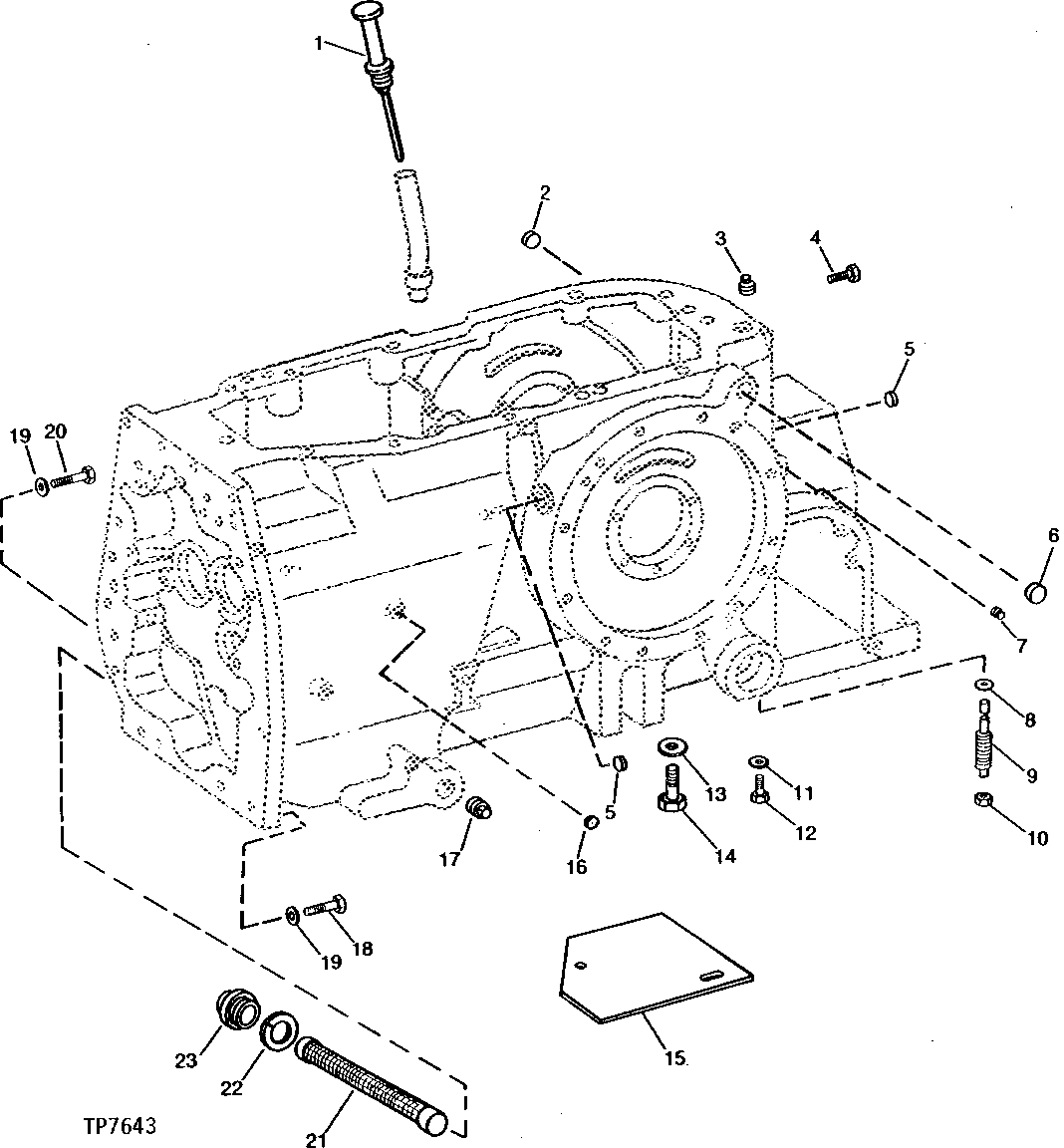

TRANSMISSION DIPSTICK, FILTER AND COVER [01B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT71191	1	DIPSTICK	-
2	M4225T	1	PLUG	(WITHOUT PARKING BRAKE)
3	15H562	1	Pipe Plug	1", (PARK BRAKE ADJUSTING HOLE)
4	19H2367	1	Cap Screw	5/8" X 3/4", (WITHOUT ROCKSHAFT)
5	T18891	2	Plug	(WITHOUT DIFFERENTIAL LOCK)
6	T21937	1	Plug	(WITHOUT PARKING BRAKE)
7	15H584	1	Pipe Plug	1/2", (PARK BRAKE BAND AND PIN HOLE)
8	R27490	1	O-Ring	(WITH PARKING BRAKE)
9	T21776	1	SCREW	(WITH PARKING BRAKE)
10	14H971	1	NUT	1/2", (WITH PARKING BRAKE)
11	R27003	1	Washer	(WITHOUT PARKING BRAKE)
12	19H2351	1	Cap Screw	1/2" X 1/2", (WITHOUT PARKING BRAKE)
13	A4827R	2	Washer	-
13	U17409	2	O-Ring	-
14	R26727	2	DRAIN PLUG	-
14	T78662	2	Drain Plug	-
15	AT75731	1	COVER	(SUB FOR T22854, THIS APPLICATION)
16	T18891	1	Plug	(WITHOUT PTO)
17	15H629	1	Pipe Bushing	1"
18	19H2735	4	Cap Screw	HS, SAE 8, 1/2" X 2"
19	T20168	6	Washer	-
20	19H2510	2	Cap Screw	HS, SAE 8, 1/2" X 1-5/8"
21	AR26375	1	SCREEN	-
22	A4808R	1	WASHER	-
23	R40147	1	FITTING	-

TRANSMISSION DIPSTICK, FILTER AND COVER [01B18]
