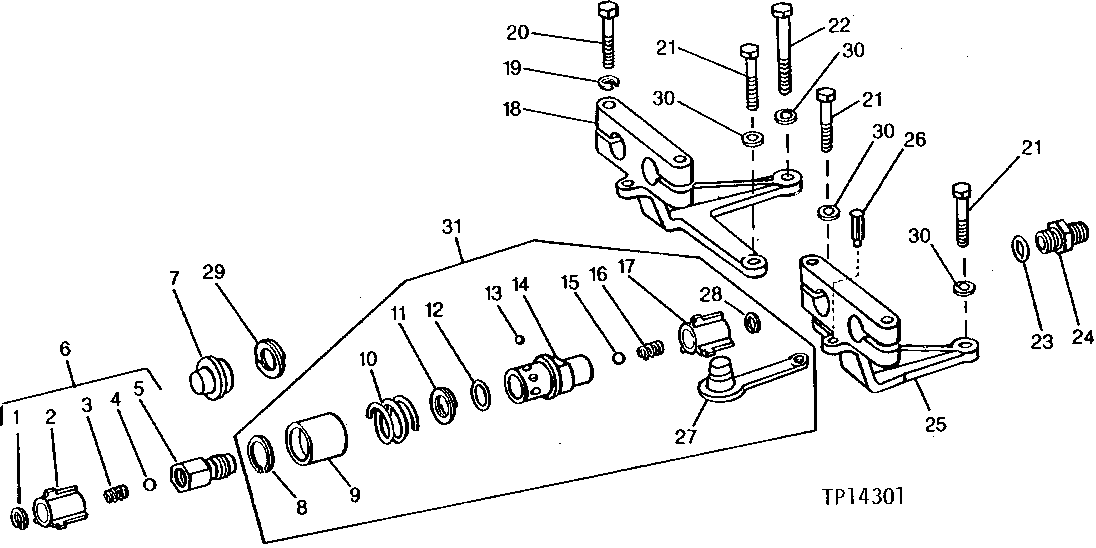

SINGLE AND DUAL SELECTIVE CONTROL VALVE COUPLERS [02G10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R59633	2	WEAR RING	-
2	R28085	2	GUIDE	(SUB AR93819, THIS APPLICATION)
3	R28084	2	SPRING	(SUB AR93819, THIS APPLICATION)
4	D2361R	2	Ball	(SUB AR93819, THIS APPLICATION)
5	R27430	2	HYD. QUICK-CONNECT COUPLER	(SUB AR93819, THIS APPLICATION)
6	AR93819	2	HYDR.QUICK COUPLER PLUG	-
7	R28006	2	CAP	-
8	R32356	2	SNAP RING	-
9	R32355	2	SLEEVE	-
10	R32354	2	SPRING	(SUB RE15361, THIS APPLICATION)
11	R26485	2	BACK-UP RING	-
12	R495R	2	O-Ring	-
13	400R	12	Ball	1/4"
14	R32353	2	SOCKET OUTLET	(SUB RE15361, THIS APPLICATION)
15	D2361R	2	Ball	1/2"
16	R28084	2	SPRING	-
17	R28085	2	GUIDE	(SUB RE15361, THIS APPLICATION)
18	T22245	1	CLAMP	L.H. (USED WITH DUAL SELECTIVE CONTROL VALVE)
19	12H304	2	Lock Washer	3/8"
20	19H1765	2	Cap Screw	3/8" X 1-3/4"
21	19H1990	3	Cap Screw	1/2" X 2-1/4"
22	19H2473	1	Cap Screw	HS, SAE 8, 1/2" X 1-3/4" (USED WITH SINGLE SELECTIVE CONTROL VALVE)
22	19H3057	1	Cap Screw	HS, SAE 8, 1/2" X 2-3/4" (USED WITH DUAL SELECTIVE CONTROL VALVE)
23	R26375	2	O-Ring	-
24	R27237	2	Fitting	-
25	T22243	1	BRACKET	R.H.
26	T22244	1	GROOVE PIN	-
27	R32419	2	COVER	-
28	R59633	2	WEAR RING	-
29	R36946	2	Snap Ring	-
30	T20168	4	Washer	-
31	RE15361	2	HYDR.QUICK COUPLER SOCKET	-

SINGLE AND DUAL SELECTIVE CONTROL VALVE COUPLERS [02G10]
