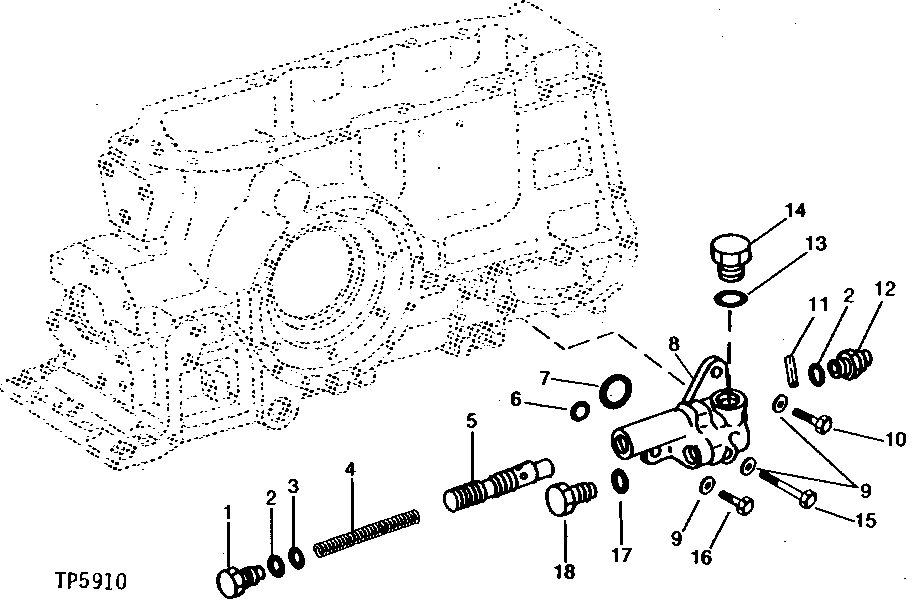

PRESSURE CONTROL VALVE 50 CM3 (3 IN.3) [02F12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R63495	1	FITTING	-
2	R26906	2	O-Ring	-
3	24H1283	1	Washer	7/32" X 1/2" X 0.049"
4	R40072	1	SPRING	-
5	AR65882	1	CONTROL VALVE	-
6	R28776	1	O-Ring	-
7	R60332	1	O-RING	-
8	T120368	1	HOUSING	USED WITH BACKHOE WITHOUT ROCKSHAFT OR WITHOUT BACKHOE WITH OR WITHOUT ROCKSHAFT, (SUB FOR R39323)
8	T75263	1	HOUSING	USED WITH BACKHOE WITH ROCKSHAFT
9	12H304	3	Lock Washer	3/8"
10	19H2633	1	Cap Screw	3/8" X 1-1/2"
11	R39324	1	DOWEL PIN	(USED WITH T120368 HOUSING)
12	R27270	1	Fitting	(USED WITH T120368 HOUSING)
12	T75264	1	FITTING	USED WITH T75263 HOUSING
13	U12547	1	O-Ring	(SUB FOR F3171R) WITHOUT BACKHOE
14	R27175	1	Drain Plug	WITHOUT BACKHOE
15	19H2458	1	Cap Screw	3/8" X 3"
16	19H3483	1	Cap Screw	3/8" X 1-1/8"
17	R26375	1	O-Ring	WITHOUT SELECTIVE CONTROL VALVE
18	R39112	1	Fitting	WITHOUT SELECTIVE CONTROL VALVE

PRESSURE CONTROL VALVE 50 CM3 (3 IN.3) [02F12]
