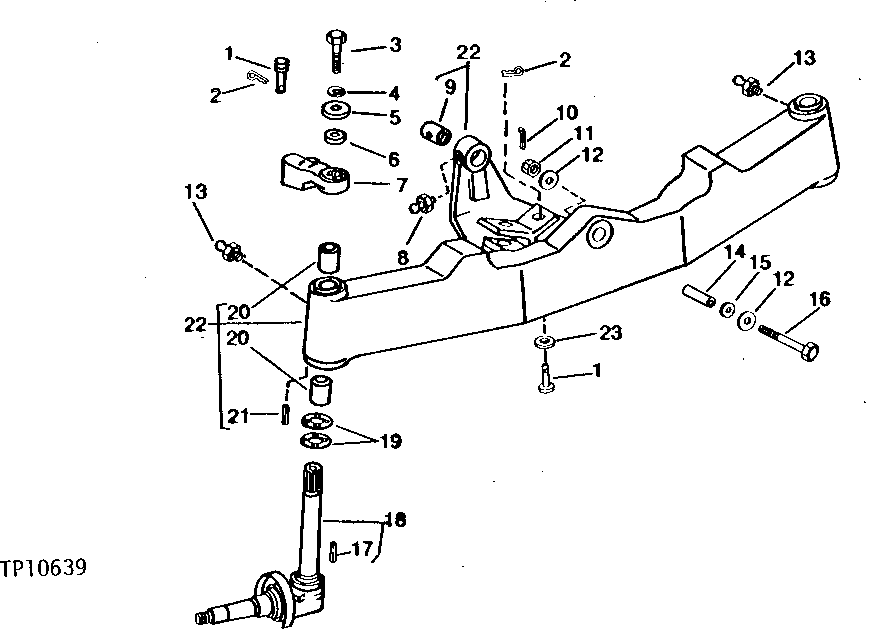

FRONT AXLE, SPINDLE AND KNUCKLE ASSEMBLY [01B04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T48225	2	PIN FASTENER	STEERING CYLINDER
2	11M7087	2	Cotter Pin	4 X 40 MM
3	19H1439	2	CAP SCREW	5/8" X 3"
4	12H294	2	Lock Washer	5/8"
5	R20135	2	Washer	-
6	R52383	4	THRUST WASHER	-
7	T71746	1	STEERING ARM	L.H. (SUB T77483) (ALSO ORDER AT76136, AS REQUIRED)
7	T77483	1	STEERING ARM	L.H. (ALSO ORDER AT76136, AS REQUIRED)
7	T77737	1	STEERING ARM	L.H.
7	T77482	1	STEERING ARM	R.H. (ALSO ORDER AT76136, AS REQUIRED)
7	T71745	1	LEVER	R.H. (SUB T77482) (ALSO ORDER AT76136, AS REQUIRED)
7	T77736	1	STEERING ARM	R.H.
8	JD7799	1	Lubrication Fitting	90°, 1/8"
9	T23170	1	BUSHING	-
10	11M7030	1	Cotter Pin	5 X 40 MM
11	14H534	1	NUT	3/4", (SUB FOR 14H902)
12	T25922	2	WASHER	(USE IF AVAILABLE)
12	T151797	2	Washer	(SUB FOR T25922 OR T134960)
13	T162396	2	Lubrication Fitting	STRAIGHT, 1/8", (SUB FOR JD7798)
14	T21669	1	BUSHING	-
15	T25921	1	SHIM	0.38 MM (.015")
16	T25840	1	CAP SCREW	-
17	34H308	2	Spring Pin	1/4" X 1/2"
17	R56457	2	DOWEL PIN	-
18	AT76758	2	KNUCKLE	-
18	AT74163	2	KNUCKLE	(SUB AT76139) (ALSO ORDER AT76136, AS REQUIRED)
18	AT76139	2	KNUCKLE	(ALSO ORDER AT76136, AS REQUIRED)
19	R49838	4	Washer	-
19	T76024	4	THRUST WASHER	-
20	R49835	4	Bushing	-
20	R52188	4	Bushing	-
21	34H308	2	Spring Pin	1/4" X 1/2"
21	R56457	2	DOWEL PIN	-
22	AT63366	1	FRONT AXLE	(LIFETIME SUPPLY) (MARKED T66815)
22	AT74162	1	FRONT AXLE	(MARKED T76023)
23	24H448	1	Washer	25/32" X 1-1/8" X 0.090"

FRONT AXLE, SPINDLE AND KNUCKLE ASSEMBLY [01B04]

Нет текстового описания
