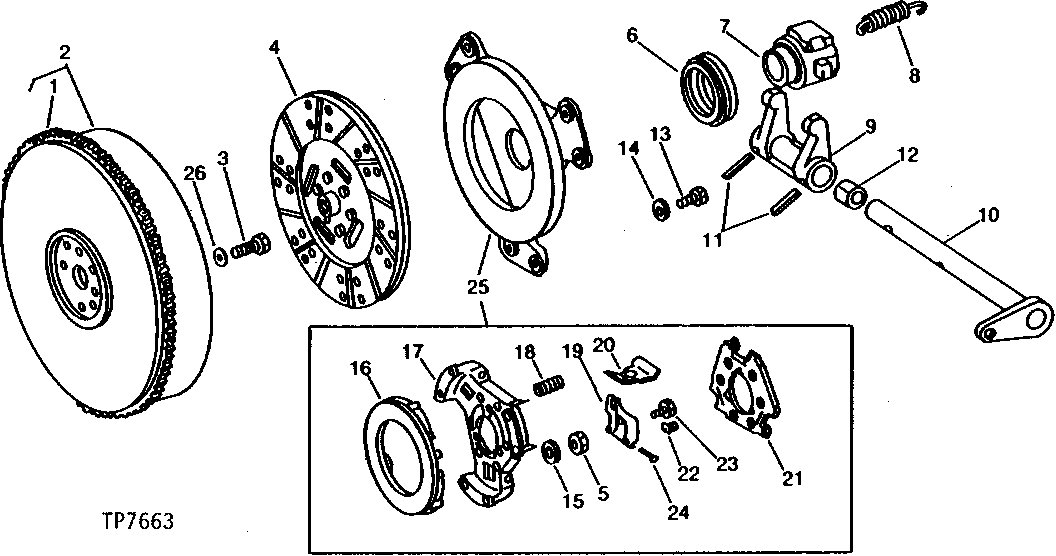

ENGINE CLUTCH AND FLYWHEEL (NO PTO) (WITHOUT REVERSER) [01F16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20088	1	GEAR	(SUB R114282) (142 TEETH)
2	AT18045	1	FLYWHEEL	(MARKED AT18045)
3	19H2993	4	Cap Screw	HS, SAE 8, 1/2" X 1-1/2"
3	R46162	4	SCREW	(CLUTCH WITH COLLARSHIFT AND NO PTO ENGINE LINE PARTS)
4	AR63695	1	Clutch Disk	-
5	14H882	3	Nut	5/16"
6	AR43065	1	THRUST BEARING	-
7	R51469	1	PLANET PINION CARRIER	-
8	T21450	1	EXTENSION SPRING	-
9	T21999	1	FORK	-
10	AT71025	1	YOKE	-
11	34H353	2	SPRING PIN	3/8" X 1-3/4"
12	T34089	1	BUSHING	-
13	L372T	6	CAP SCREW	-
14	12H303	6	Lock Washer	5/16"
15	T15940	3	WASHER	(USE IF AVAILABLE)
15	24H1657	1	Washer	21/64" X 1-1/4" X 7/64", (SUB FOR T15940)
16	-	1	Part 18	PRESSURE ( T39871 NO LONGER AVAILABLE)
17	-	1	Part 19	( T35299 NO LONGER AVAILABLE)
18	-	6	Part 20	( T35295 NO LONGER AVAILABLE)
19	-	3	Part 21	( T35301 NO LONGER AVAILABLE)
20	-	3	Part 22	( T35298 NO LONGER AVAILABLE)
21	-	1	Part 23	( T35300 NO LONGER AVAILABLE)
22	T35296	3	CLAMP	-
23	T35294	3	BOLT	-
24	-	3	Part 26	( T35297 NO LONGER AVAILABLE)
25	AT35213	1	CLUTCH PLATE	(SUB AT25817, THIS APPLICATION)
26	T23891	4	Washer	-
