STANDARD BACKHOE BUCKETS 18, 24 AND 36: (457MM, 610MM AND 914MM) (9250 BACKHOE) [02E21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

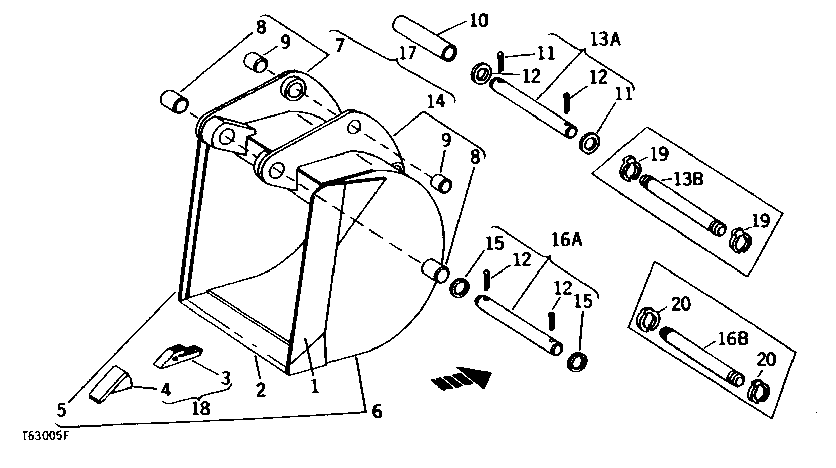

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U42744	1	CUTTING EDGE	R.H.
2	U42753	1	CUTTING EDGE	457.2 MM (18") BUCKET
2	U42752	1	CUTTING EDGE	609.6 MM (24") BUCKET
2	U42755	1	CUTTING EDGE	914.4 MM (36") BUCKET
3	U14436	1	SHANK	(4 USED WITH 457.2 MM (18") AND 609.6 MM (24") BUCKETS, 6 USED WITH 914.4 MM (36") BUCKET)
4	U14437	1	POINT	(4 USED WITH 457.2 MM (18") AND 609.6 MM (24") BUCKETS, 6 USED WITH 914.4 MM (36") BUCKET)
5	U42745	1	CUTTING EDGE	L.H.
6	-	1	Part 8	457.2 MM (18") ( AT37729 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
6	-	1	Part 9	609.6 MM (24") ( AT37730 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
6	-	1	Part 10	762.0 MM (30") ( AT37731 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
6	-	1	Part 11	914.4 MM (36") ( AT37732 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
7	-	1	Part 12	L.H. (SUB AT36087)
8	U42738	2	BUSHING	-
9	U42737	4	BUSHING	-
10	28H2239	1	SPACER	1-1/4" X 7"
11	U11651	2	Washer	-
12	11H221	4	COTTER PIN	3/8" X 2-1/2"
14	-	1	Part 20	R.H. (SUB AT36087)
15	U11649	2	WASHER	-
17	AT36087	1	PLATE	-
18	-	1	Part 25	(4 USED WITH 457.2 MM (18") AND 609.6 MM (24") BUCKETS, 6 USED WITH 914.4 MM (36") BUCKET) (SUB U14436 ALONG WITH U14437) ( AU12534 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
19	T59447	2	Snap Ring	-
20	T59452	2	SNAP RING	-
13A	AU42426	1	PIN FASTENER	COUPLER LINKS TO BUCKET, ASSEMBLY
13B	T59459	1	PIN FASTENER	(SUB AU42426)
16A	AU42334	1	PIN FASTENER	BUCKET TO DIPPERSTICK
16B	T59451	1	PIN FASTENER	(SUB AU42334)
