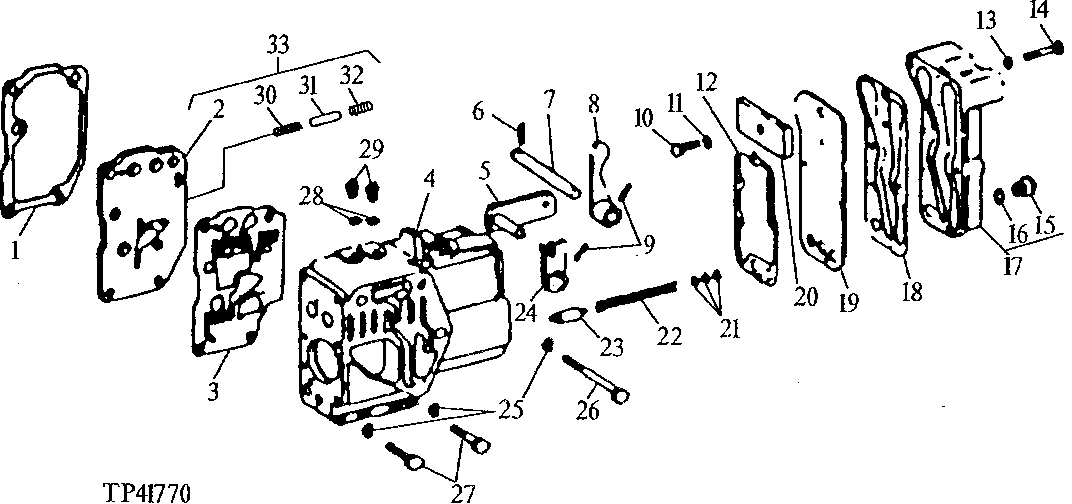

REVERSER CLUTCH CONTROL VALVE SHAFT AND ARM [01F02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T27771	1	GASKET	-
2	-	1	Part 2	( T27772 - NO LONGER AVAILABLE) (SUB RE50941 AND R107207)
3	R99385	1	GASKET	(SUB FOR T40170)
3	R107207	1	GASKET	(USE WITH RE50941)
4	R54579	1	HOUSING	-
5	AR39064	1	SHAFT	-
6	25H522	1	Groove Pin	3/16" X 7/8"
7	R39152	1	PIN FASTENER	-
8	AR39040	1	ARM	-
9	25H522	2	Groove Pin	3/16" X 7/8"
10	19H3483	1	Cap Screw	3/8" X 1-1/8"
11	12H304	1	Lock Washer	3/8"
12	R98923	1	GASKET	(SUB FOR R39163)
13	24H1286	5	Washer	9/32" X 1/2" X 1/16"
14	19H2437	5	SCREW	1/4" X 1-1/2"
15	R27218	1	Fitting Plug	-
16	R26448	1	O-Ring	-
17	R39160	1	VALVE COVER	(DOES NOT INCLUDE PLUG AND O-RING)
17	-	1	Part 18	(WHEN AR39138 IS NO LONGER AVAILABLE SUB R39160, R26448 AND R27218)
18	R98922	1	GASKET	(SUB FOR R39161)
19	R39162	1	PLATE	-
20	R39248	1	STRAP	-
21	R33521	6	Shim	0.76 MM (.030")
21	B1085R	1	WASHER	-
21	T33473	1	SHIM	0.41 MM (.016")
22	R39132	1	SPRING	-
23	R39294	1	PIN	-
24	R83001	1	ARM	(SUB FOR T39521)
25	24M7096	3	Washer	0.413" X 0.709" X 0.063"
26	19H1912	1	Cap Screw	3/8" X 3-1/2"
27	19H3267	2	Cap Screw	3/8" X 1-5/8"
28	R26287	2	O-Ring	-
29	R27216	2	DRAIN PLUG	(SUB FOR R31631)
30	R106727	1	SPRING	-
31	R27053	1	NEEDLE ROLLER	-
32	15H560	1	Pipe Plug	-
33	RE50941	1	PLATE	(SUB FOR T27772, ALSO ORDER R107207)

REVERSER CLUTCH CONTROL VALVE SHAFT AND ARM [01F02]
