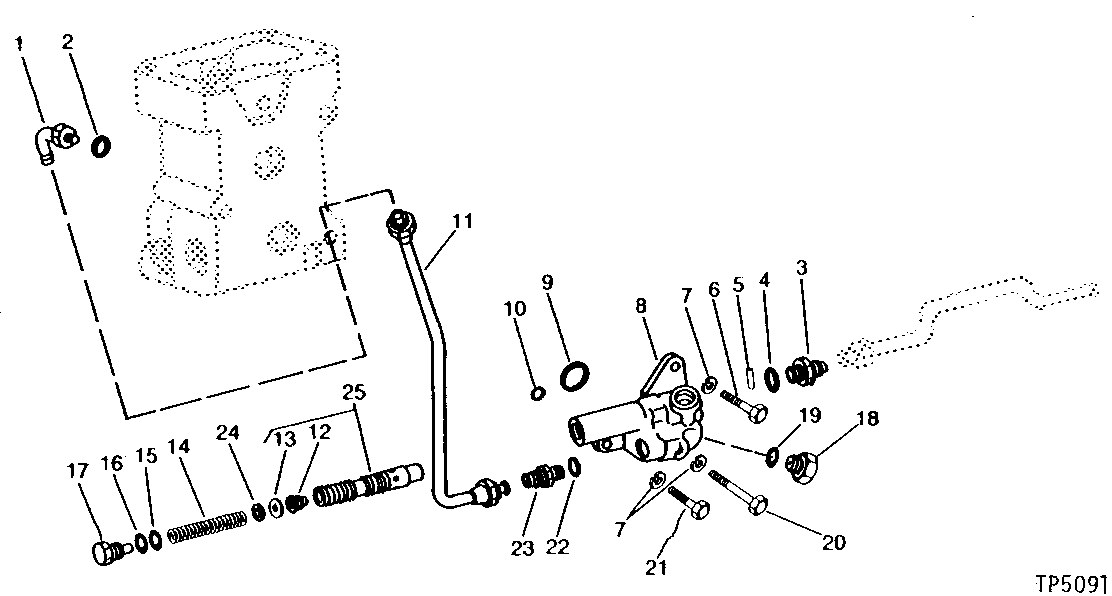

PRESSURE CONTROL VALVE (SERIAL NO. 339545- ) [01H04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT35120	1	Elbow Fitting	(B)
2	R26448	1	O-Ring	(B)
3	R27270	1	Fitting	-
4	R26906	1	O-Ring	(B)
5	R39324	1	DOWEL PIN	-
6	19H2633	1	Cap Screw	3/8" X 1-1/2"
7	12H304	3	Lock Washer	3/8"
8	T120368	1	HOUSING	(SUB FOR R39323)
9	R60332	1	O-RING	-
10	R28776	1	O-Ring	-
11	AR91029	1	OIL LINE	(B)
12	R40562	1	APERTURE	-
13	-	1	Part 13	(SUB AR65882)
14	R40072	1	SPRING	-
15	R26906	1	O-Ring	(B)
16	24H1283	1	Washer	7/32" X 1/2" X 0.049"
17	R63494	1	FITTING	-
18	R27175	2	Drain Plug	-
19	U12547	2	O-Ring	(SUB FOR (2) F3171R)
20	19H2458	1	Cap Screw	3/8" X 3"
21	19H3483	1	Cap Screw	3/8" X 1-1/8"
22	R26375	1	O-Ring	(B)
23	R27237	1	Fitting	(B) (WITH SELECTIVE CONTROL VALVE)
23	R39112	1	Fitting	(WITHOUT SELECTIVE CONTROL VALVE)
24	R33521	1	Shim	0.76 MM (.030")
25	AR65882	1	CONTROL VALVE	(SUB AR65882)
..	AR91861	1	VALVE	POPPET, DOUBLE ACTING, SINGLE, WITHOUT LEVER LOCK, FOR USE WITH 5.00 TO 1 FINAL DRIVE RATIO, (SUB FOR AR76093) (INCLUDES (2) AR21837, AR99025, (2) R39171, R62147, R77420, R20922, T22996, T23069, (2) 14H732, 19H1895, (2) 19H3597 AND 24H1625)

PRESSURE CONTROL VALVE (SERIAL NO. 339545- ) [01H04]
