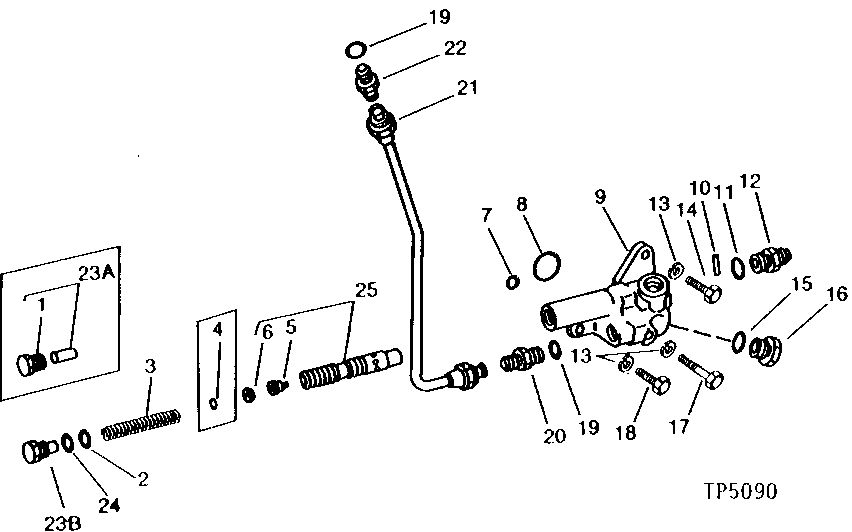

PRESSURE CONTROL VALVE (SERIAL NO. -339544) [01H03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27474	1	Drain Plug	-
2	R26906	1	O-Ring	-
3	R40072	1	SPRING	-
4	R33521	2	Shim	.76 MM (.030")
5	R40562	1	APERTURE	-
6	-	1	Part 6	(SUB AR65882)
7	R28776	1	O-Ring	-
8	R60332	1	O-RING	(SUB FOR U15415, THIS APPLICATION)
9	T120368	1	HOUSING	(SUB FOR R39323)
10	R39324	1	DOWEL PIN	-
11	R26906	1	O-Ring	-
12	R27270	1	Fitting	-
13	12H304	3	Lock Washer	3/8"
14	19H2633	1	Cap Screw	3/8" X 1-1/2"
15	U12547	2	O-Ring	(SUB FOR (2) F3171R)
16	R27175	2	Drain Plug	-
17	19H2458	1	Cap Screw	3/8" X 3"
18	19H3483	1	Cap Screw	3/8" X 1-1/8"
19	R26375	1	O-Ring	-
20	R27237	1	Fitting	(WITH SELECTIVE CONTROL VALVE)
20	R39112	1	Fitting	(WITHOUT SELECTIVE CONTROL VALVE)
21	AT28578	1	LINE	-
22	R27237	1	Fitting	-
24	24H1283	1	Washer	7/32" X 1/2" X 0.049"
25	AR65882	1	CONTROL VALVE	(WITH ORIFICE AND WASHER) (MARKED R48528)
23A	AR26761	1	PLUG	(SUB R63494 AND (2) 24H1283)
23B	R63494	1	FITTING	-

PRESSURE CONTROL VALVE (SERIAL NO. -339544) [01H03]
