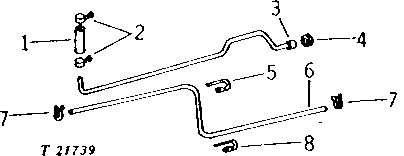

OIL COOLER LINE AND BLEED TUBES [01I08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L35845	1	HOSE	OIL COOLER TO CLUTCH HOUSING OIL LINE (WITH REVERSER) (SUB FOR T24760, THIS APPLICATION)
1	-	1	Part 2	(WITHOUT REVERSER) (.69 AND 1.38 PUMP) 114 MM LONG (3/4" X 4-1/2") (MAKE FROM R57300 BULK MATERIAL, CUT TO LENGTH) (SUB FOR R34603)
1	-	1	Part 3	1/4 MM LONG (3/4" X 4-1/2") (WITHOUT REVERSER) (3.01 PUMP) (MAKE FROM T61939, 3 M (10 FT.) BULK) (SUB FOR T35692 AND T21371)
2	AR21839	1	Clamp	-
3	AT22143	1	OIL LINE	OIL COOLER TO CLUTCH HOUSING OIL LINE (WITHOUT REVERSER)
3	AT22263	1	OIL LINE	OIL COOLER TO CLUTCH HOUSING OIL LINE (WITH REVERSER)
4	R1662R	1	WASHER	-
5	R44302	1	Tie Band	(WITH MANUAL STEERING)
6	T23083	1	TUBE	-
7	T19324	2	CLAMP	-
8	R44302	1	Tie Band	-
