Открытый узел

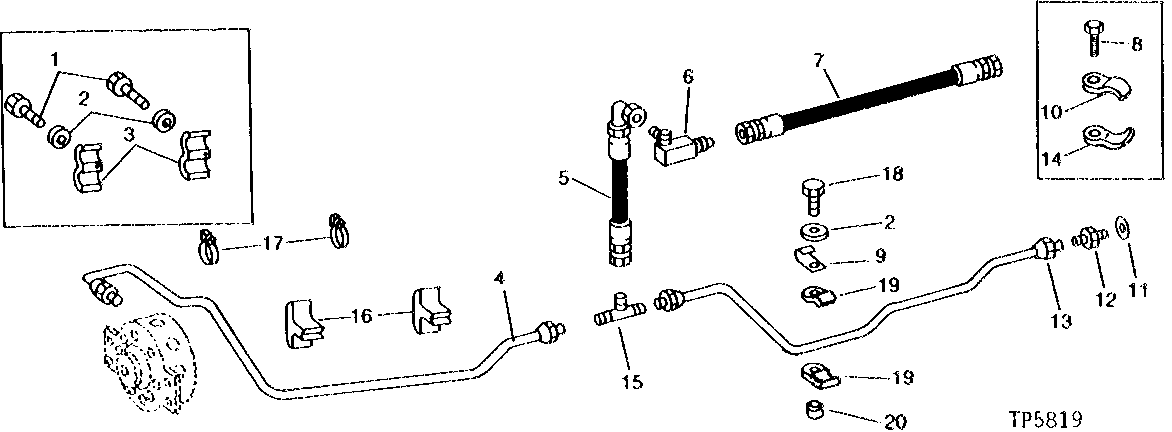

HYDRAULIC PUMP OIL PRESSURE FRONT LINES [01I09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3239	2	Cap Screw	3/8" X 1-1/4"
2	12H304	3	Lock Washer	3/8"
3	T23040	2	CLAMP	OIL LINES-TO-CYLINDER BLOCK, (SUB AR21999) (ALSO ORDER R49076)
4	AT37737	1	OIL LINE	FRONT
5	AT38634	1	HYDRAULIC HOSE - FABRICATE	PRESSURE LINE TO ACCUMULATOR 305 MM LONG (3/8" X 12")
6	AR32665	1	Tee Fitting	-
7	AT38635	1	Hydraulic Hose	635 MM LONG (9/16" X 25") TEE TO ELBOW IN POWER STEERING VALVE HOUSING
7	AT54133	1	HYDRAULIC HOSE - FABRICATE	635 MM LONG (9/16" X 25") TEE TO ELBOW IN POWER STEERING VALVE HOUSING
8	19H2284	2	Cap Screw	3/8" X 7/8"
9	B1986R	1	CLIP	(WITH REVERSER)
10	T25724	1	CLAMP	(SUB (2) R35726, 28H1518, 12H304 AND 19H1732, THIS APPLICATION)
11	R26906	1	O-Ring	-
12	R27270	1	Fitting	-
13	AT23557	1	OIL LINE	REAR PRESSURE (WITHOUT REVERSER)
13	AT23561	1	OIL LINE	REAR PRESSURE (WITH REVERSER)
14	R28539	1	CLAMP	(SUB (2) R35726, 28H1518, 12H304 AND 19H1732, THIS APPLICATION)
15	T25723	1	Tee Fitting	-
16	R49076	2	SPACER	-
17	AR21999	2	Hose Clamp	(SUB FOR AR21840)
18	19H1732	1	Cap Screw	3/8" X 1-1/4"
19	R35726	2	CLAMP	-
20	28H1518	1	Washer	0.493" X 0.675" X 5/16"

HYDRAULIC PUMP OIL PRESSURE FRONT LINES [01I09]
