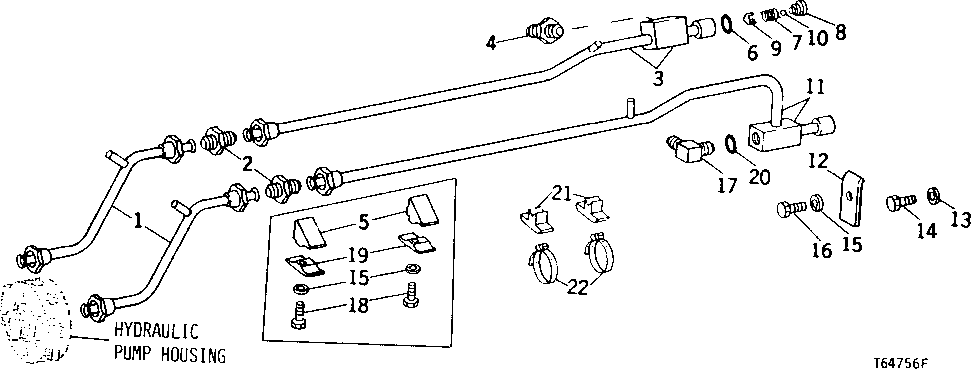

HYDRAULIC PUMP OIL INLET REAR LINES [01I10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT23555	1	OIL LINE	FRONT INLET
2	R27266	1	Fitting	-
3	AT23565	1	OIL LINE	REAR (WITH REVERSER)
4	R27267	1	Fitting	-
4	U12547	1	O-Ring	(SUB FOR F3171R) (NOT ILLUSTRATED)
5	T23053	2	SPACER	OIL LINES-TO-CYLINDER BLOCK, (SUB AR21999) (ALSO ORDER R49076)
6	R1662R	1	WASHER	-
7	R39078	1	Spring	INLET (WITHOUT REVERSER)
8	T23203	1	VALVE SEAT	(WITHOUT REVERSER)
9	R39076	1	Guide	(WITHOUT REVERSER)
10	D2361R	1	Ball	1/2" (WITHOUT REVERSER)
11	AT23564	1	OIL LINE	(WITHOUT REVERSER)
12	T23059	1	RETAINER	(WITHOUT REVERSER)
13	R43696	1	Washer	(SUB FOR A4231R) (WITH REVERSER)
14	19H2676	1	Cap Screw	3/8" X 1"
15	12H304	3	Lock Washer	3/8"
16	19H3483	1	Cap Screw	3/8" X 1-1/8"
17	AT32331	1	Elbow Fitting	(SUB FOR AR26723)
18	19H3239	2	Cap Screw	3/8" X 1-1/4"
19	T23040	2	CLAMP	OIL LINES-TO-CYLINDER BLOCK, (SUB AR21999) (ALSO ORDER R49076)
20	U12547	1	O-Ring	(SUB FOR F3171R)
21	R49076	2	SPACER	-
22	AR21999	2	Hose Clamp	(SUB FOR AR21840)
