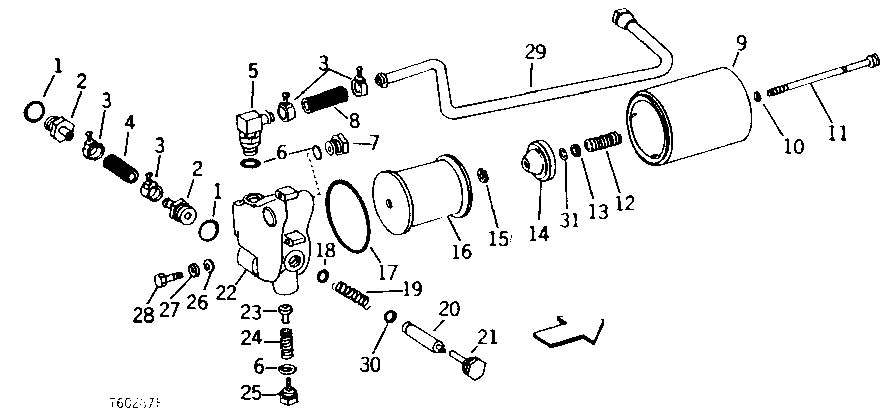

HYDRAULIC OIL FILTER AND RELIEF VALVE [01H02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A4808R	2	WASHER	-
2	T38460	2	FITTING	-
3	AR21839	4	Clamp	-
4	-	1	Part 4	86 MM LONG (1" X 3-3/8") (MAKE FROM U11186, 3 M (10 FT.) BULK) (SUB FOR T38461 AND T37798)
5	AT21574	1	Fitting	-
6	U12547	4	O-Ring	(A) (SUB FOR (4) F3171R)
7	R27175	2	Drain Plug	-
8	T19024	1	HYDRAULIC HOSE	76 MM LONG (3/4" X 3")
9	R51654	1	COVER	-
10	R394R	1	O-Ring	-
11	R82731	1	SCREW	(SUB FOR R54753)
12	R66064	1	SPRING	(SUB FOR H819R, THIS APPLICATION)
13	24H1227	1	Washer	17/32" X 13/16" X 0.060"
14	R28593	1	RETAINER	(USE WITH R394R ROUND CROSS-SECTION O-RING) (SUB R65892 AND F2741R)
14	R65892	1	RETAINER	(USE WITH F2741R SQUARE CROSS-SECTION O-RING)
15	R32507	1	Snap Ring	-
16	AR75603	1	FILTER ELEMENT	(SUB FOR AT34670 AND AR75601)
17	R34733	1	WASHER	-
18	R26906	1	O-Ring	(A)
19	T27992	1	SPRING	(A)
20	R33162	1	VALVE	(A) (SUB R57559 AND R33259)
20	R57559	1	VALVE	-
21	AT26172	1	PLUG	(A) (NO LONGER AVAILABLE, ORDER R27474 AND T22850)
22	AT27078	1	HOUSING	(A) (MARKED T27991)
23	R40976	1	VALVE	(A)
24	R30776	1	SPRING	(A)
25	AT26171	1	PLUG	(A)
26	24M7096	2	Washer	0.413" X 0.709" X 0.063"
27	12H304	2	Lock Washer	3/8"
28	19H3239	2	Cap Screw	3/8" X 1-1/4"
29	AT23542	1	OIL LINE	TO OIL LINE ADAPTER (WITHOUT REVERSER)
29	AT23543	1	OIL LINE	(WITH REVERSER)
30	R33259	1	O-Ring	-
31	R394R	1	O-Ring	(USE WITH R28593 RETAINER)
31	F2741R	1	Packing	(USE WITH R65892 RETAINER)
..	AT26173	1	HOUSING	-

HYDRAULIC OIL FILTER AND RELIEF VALVE [01H02]
