Открытый узел

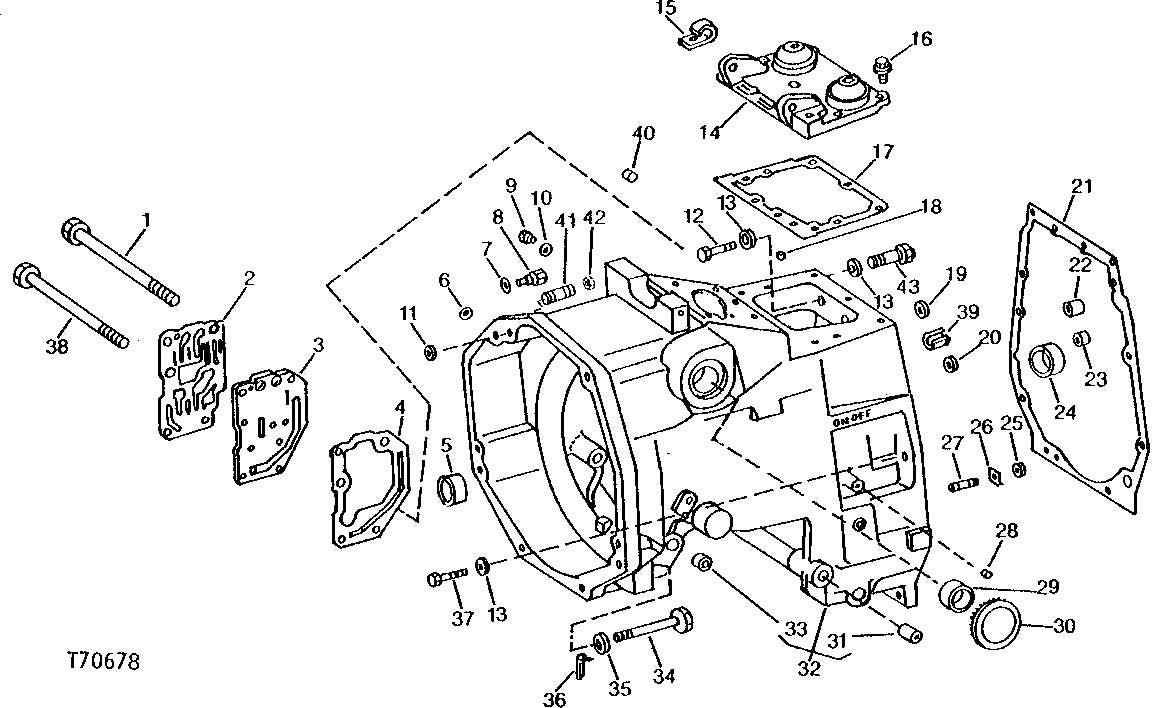

CLUTCH HOUSING (WITH REVERSER) [01E09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	08H4460	1	Cap Screw	1/2" X 7-1/2"
2	R99385	1	GASKET	(SUB FOR T40170)
2	R107207	1	GASKET	(USE WITH RE50941)
3	-	1	Part 4	( T27772 - NO LONGER AVAILABLE) (SUB RE50941 AND R107207)
4	T27771	1	GASKET	-
5	T23211	1	BUSHING	(A)
6	30H13	1	PLUG	1"
7	T21827	1	WASHER	(WITHOUT TACHOMETER)
8	T22898	1	PLUG	(WITHOUT TACHOMETER)
9	R39112	1	Fitting	-
10	R26375	1	O-Ring	-
11	R26919	1	WASHER	-
12	19H2510	2	Cap Screw	HS, SAE 8, 1/2" X 1-5/8"
13	T20168	5	Washer	-
14	AT23579	1	COVER	-
15	T19935	1	Clamp	-
16	T22728	7	SCREW	-
16	T22728	5	SCREW	-
17	T36042	1	GASKET	-
18	T12083	1	Plug	(A)
19	T22851	1	WASHER	-
19	T68412	1	WASHER	-
20	A4847R	1	Washer	-
21	R99290	1	GASKET	(SUB FOR T21968)
22	T22584	1	BUSHING	(A) LUBRICATION TUBE
23	T22585	1	BUSHING	(A) PRESSURE TUBE
24	T23212	1	BUSHING	(A) PLANET, PINION CARRIER SHAFT
25	14H812	4	NUT	3/8"
26	R30958	4	LOCK PLATE	-
27	C2175R	4	STUD	(A)
28	M4224T	1	PLUG	(WITHOUT MID PTO)
29	L1788C	1	BUSHING	(A)
30	R1680R	2	PLUG	(SUB FOR T22569, THIS APPLICATION)
31	R27567	1	BUSHING	(A)
32	AT33619	1	HOUSING	(INCLUDES ALL PARTS IDENTIFIED BY (A) (MARKED T34503) (SUB AT65216) (ALSO ORDER (2) T68412)
32	AT65216	1	HOUSING	(INCLUDES ALL PARTS IDENTIFIED BY (A) (MARKED T67961)
33	R27320	1	BUSHING	(A)
34	19H3170	4	Cap Screw	5/8" X 4-1/2"
34	19H3170	3	Cap Screw	HS, SAE 8, 5/8" X 4-1/2"
35	R70268	4	Washer	(SUB FOR (4) R42363)
36	19M7084	1	CAP SCREW	M8 X 15
37	19H2735	1	Cap Screw	HS, SAE 8, 1/2" X 2"
38	19H1991	1	Cap Screw	1/2" X 8"
39	34H251	1	Spring Pin	(A) 1/8" X 1"
40	M1102T	1	PLUG	-
41	L29854	1	STUD	-
42	14H1040	2	Nut	1/2"
43	19H2644	2	Cap Screw	HS, SAE 8, 1/2" X 2-1/2"
44	R106727	1	SPRING	-
45	R27053	1	NEEDLE ROLLER	-
46	15H560	1	Pipe Plug	-
47	RE50941	1	PLATE	(SUB FOR T27772, ALSO ORDER R107207)

CLUTCH HOUSING (WITH REVERSER) [01E09]
