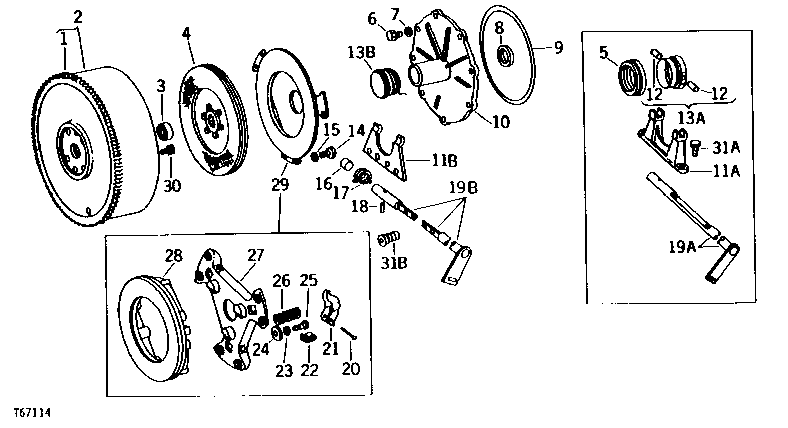

CLUTCH DISCONNECT AND FLYWHEEL (WITH REVERSER) [01E14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20088	1	GEAR	(142 TEETH)
2	AR66780	1	FLYWHEEL	-
3	JD9449	1	Ball Bearing	-
4	RE33891	1	CLUTCH DISK	(DIESEL) (SUB FOR AL24059)
4	AT21665	1	CLUTCH DISK	(GASOLINE)
5	AT17464	1	THRUST BEARING	-
6	19H3483	8	Cap Screw	3/8" X 1-1/8"
7	12H304	8	Lock Washer	3/8"
8	AR69708	1	SEAL	(SUB FOR AF1934R)
9	T22178	1	WASHER	-
10	T22177	1	SUPPORT	-
12	T22567	2	PIN FASTENER	-
14	L372T	6	CAP SCREW	-
15	12H303	6	Lock Washer	5/16"
16	R27320	1	BUSHING	-
17	T24948	1	SPRING	-
18	34H253	1	SPRING PIN	1/8" X 1-3/8"
20	-	3	Part 24	( T11700 NO LONGER AVAILABLE)
21	-	3	Part 25	( T11701 AND T63652 NO LONGER AVAILABLE)
21	-	3	Part 26	( T63652 NO LONGER AVAILABLE)
22	T13267	3	CLIP	-
23	14H882	3	Nut	5/16"
24	-	3	Part 29	( T13269 NO LONGER AVAILABLE)
25	H61022	3	CAP SCREW	-
26	-	3	Part 31	( T24956 NO LONGER AVAILABLE)
27	-	1	Part 32	( H33689 NO LONGER AVAILABLE)
28	-	1	Part 33	( T24955 NO LONGER AVAILABLE)
29	AR63785	1	PLATE	(SUB FOR AT22064) (SUB AT60368)
29	AT60368	1	CLUTCH PLATE	-
30	19H3385	4	Cap Screw	HS, SAE 8, 1/2" X 1-1/8", (SUB FOR R28029)
11A	T22505	1	FORK	-
11B	T63651	1	FORK	-
13A	AT20055	1	HOUSING	CARRIER FOR THROW OUT BEARING,WITH PINS
13B	AT60365	1	ROLLER CARRIAGE	-
19A	AT27717	1	SHAFT	-
19B	AT60373	1	SHAFT	-
31A	19H2552	2	CAP SCREW	3/8" X 1-1/8"
31B	H78097	4	Screw	(SUB FOR R49482)

CLUTCH DISCONNECT AND FLYWHEEL (WITH REVERSER) [01E14]

Нет текстового описания
