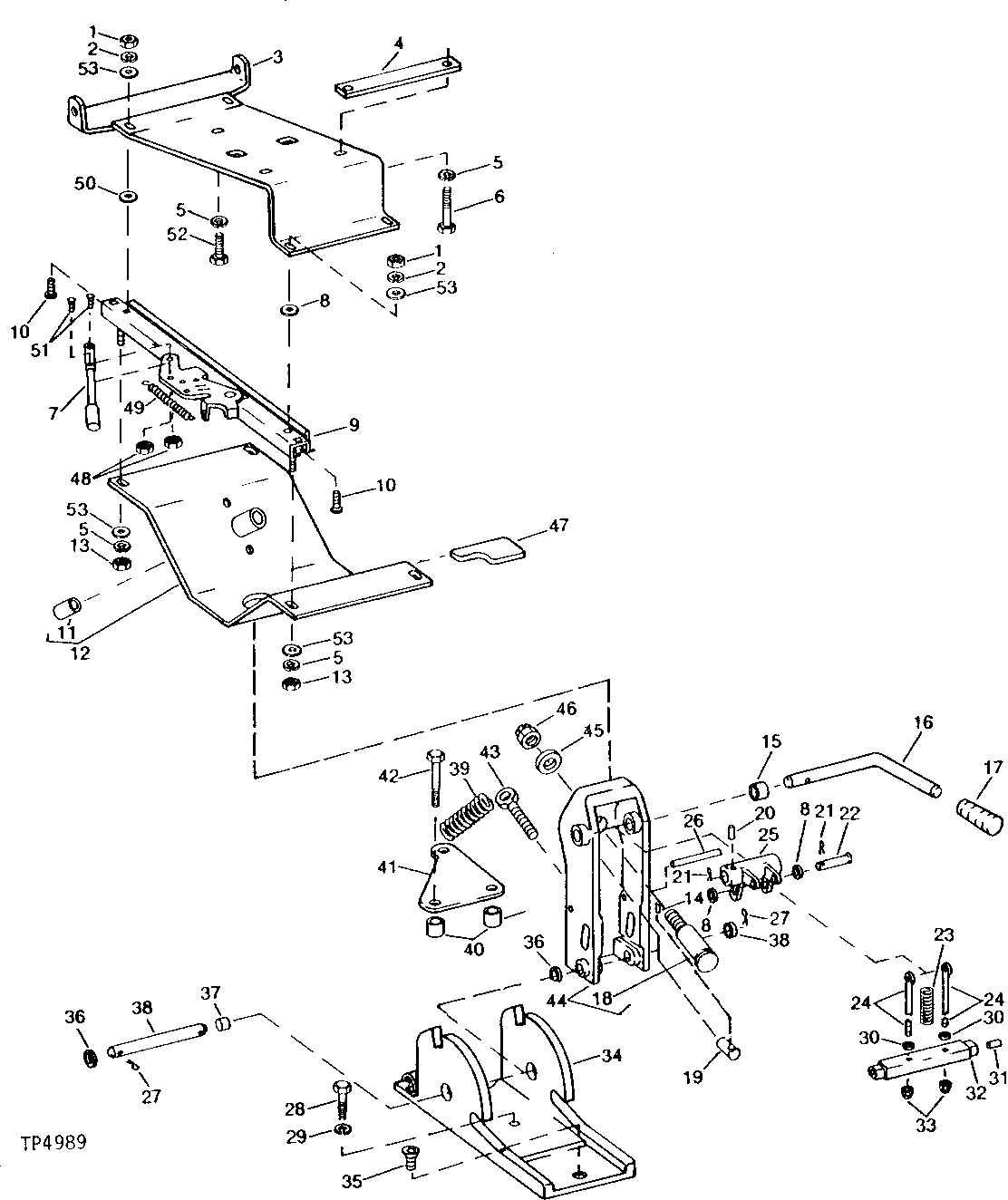

BACKHOE SWIVEL SEAT ADJUSTERS AND SUPPORTS (SERIAL NO. 308460- ) [01K05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H650	6	Nut	5/16"
2	12H303	4	Lock Washer	5/16"
3	AT59771	1	PLATE	UPPER
4	T30457	1	STRAP	-
5	12H304	7	Lock Washer	3/8"
6	19H1648	2	Cap Screw	3/8" X 3/4"
7	T39140	1	HANDLE	-
8	24H1243	2	WASHER	11/32" X 5/8" X 1/16"
9	AT37474	1	ADJUSTER	R.H.
9	AT36733	1	ADJUSTER	L.H. (NOT ILLUSTRATED)
10	T38065	6	SCREW	-
11	T21998	1	BUSHING	-
12	AT59769	1	PLATE	LOWER WITH BUSHING
13	14H785	2	Nut	5/16"
14	34H286	1	Spring Pin	3/16" X 1-1/2"
15	T16746	2	BUSHING	(SUB FOR T17987, THIS APPLICATION)
16	T62446	1	PIN FASTENER	-
17	T71570	1	Grip	(SUB FOR T33746, THIS APPLICATION)
18	T62442	1	STUD	-
19	T62445	1	PIN	-
20	34H282	1	Spring Pin	3/16" X 1"
21	11M7059	2	Cotter Pin	3.200 X 20 MM
22	R57619	1	PIN FASTENER	-
23	T15508	1	SPRING	-
24	T62443	2	EYEBOLT	-
25	T62444	1	BELLCRANK	-
26	34H325	1	Spring Pin	1/4" X 3-1/2"
27	11M7038	2	Cotter Pin	6.300 X 40 MM
28	19H2898	1	Cap Screw	1/2" X 1-1/4"
29	12H301	1	Lock Washer	1/2"
30	14H786	2	Nut	1/4"
31	34H251	2	Spring Pin	1/8" X 1"
32	T62451	1	BAR	-
33	M40333	1	Lock Nut	-
34	AT59767	1	SUPPORT	-
35	E34227	1	Bolt	(SUB FOR T56446)
36	24H1181	4	Washer	13/16" X 1-1/8" X 0.060"
37	M1640T	2	BUSHING	-
38	T15963	1	PIN FASTENER	-
39	T62450	1	SPRING	-
40	28H2498	2	Bushing	1/2" X 5/8"
41	T62449	1	BRACKET	-
42	19H2644	2	Cap Screw	HS, SAE 8, 1/2" X 2-1/2"
43	E45594	1	EYEBOLT	-
44	AT59768	1	SUPPORT	WITH PIVOT PIN
45	T17776	1	Washer	-
46	T25879	1	Nut	-
47	T62448	1	ISOLATOR	-
48	T531T	2	Lock Nut	-
49	T39497	1	SPRING	-
50	24H1308	6	Washer	13/32" X 1" X 0.134"
51	21H1128	2	SCREW	0.190" X 3/4"
52	19H2676	1	Cap Screw	3/8" X 1"
53	24H1822	8	Washer	11/32" X 7/8" X .060"
