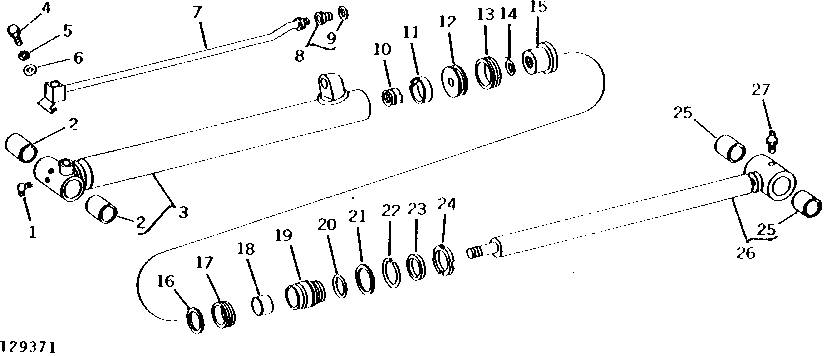

BACKHOE BUCKET CYLINDER (9250 BACKHOE) [02E17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7806	1	Lubrication Fitting	1/4"
2	U40150	2	BUSHING	-
3	AU40099	1	HYDRAULIC CYLINDER BARREL	-
4	19H1813	1	CAP SCREW	5/16" X 5/8"
5	12H303	1	Lock Washer	5/16"
6	24H1226	1	Washer	1/2" X 1-1/4" X 0.083"
7	AU40106	1	TUBE	-
8	AH16917	1	ADAPTER FITTING	-
9	R26375	1	O-Ring	-
10	P45231	1	LOCK NUT	-
11	T40416	1	WEAR RING	(A)
12	U17299	1	PISTON	-
13	R72826	1	PACKING	(A) (SUB FOR T38194, THIS APPLICATION)
14	R495R	1	O-Ring	(A)
15	U17300	1	PISTON	-
16	U14128	1	SNAP RING	-
17	R76802	1	SEAL	(A) (SUB FOR T36998)
18	U41823	1	WEAR RING	(A)
19	U41958	1	GUIDE	(ALSO ORDER U41823)
20	R86192	1	O-RING	(A) (SUB FOR U12331)
21	R78823	1	BACK-UP RING	(SUB FOR R35684, THIS APPLICATION)
22	U10136	1	SNAP RING	-
23	U16406	1	SEAL	(A)
24	U10139	1	NUT	-
25	U40431	2	BUSHING	-
26	AU40101	1	HYDRAULIC CYLINDER ROD	-
27	JD7797	1	Lubrication Fitting	1/4", STRAIGHT
..	-	1	Part 28	( AU40107 NO LONGER AVAILABLE) (SUB R35684, U14128, U41958, AU40099, AU40101, JD7797, JD7806, P45231, U10136, U10139, U17299, U17300 AND RE18751) (LESS RETURN TUBE)
..	RE18751	1	HYDRAULIC CYLINDER KIT	(SUB FOR AT36829, AR96511 AND AR105405)

BACKHOE BUCKET CYLINDER (9250 BACKHOE) [02E17]
