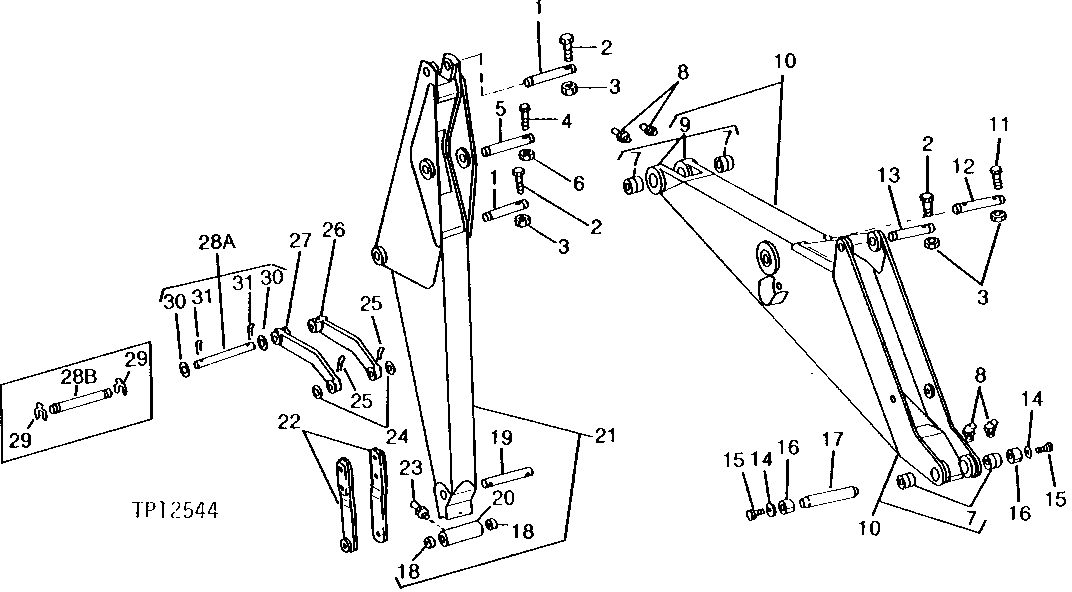

BACKHOE BOOM AND DIPPERSTICK (9250 BACKHOE) [02D22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U15822	2	PIN	-
2	19H1781	3	CAP SCREW	1/2" X 3-1/2"
3	BP12214	4	Lock Nut	(SUB FOR U12622)
4	19H2718	1	Cap Screw	5/8" X 4-3/4"
5	T44275	1	PIN FASTENER	BOOM TO DIPPERSTICK, (SUB FOR T39922)
6	U14555	1	Lock Nut	-
7	U43163	4	BUSHING	-
8	JD7806	4	Lubrication Fitting	1/4"
9	-	1	Part 9	( AU42087 USE IF AVAILABLE)
10	AT52068	1	MAIN BOOM	(SUB FOR AT38673)
11	19H1868	1	CAP SCREW	1/2" X 3-3/4"
12	T39919	1	PIN	BOOM CYLINDER TO BOOM
13	T39918	1	PIN	CROWD CYLINDER TO BOOM
14	U43180	2	SPACER	-
15	19H2717	2	Cap Screw	HS, SAE 8, 3/4" X 1-3/4"
16	U43179	2	TAPERED SLEEVE	-
17	U43184	1	PIN	-
18	U10666	2	BUSHING	-
19	U40108	1	PIN	-
20	T39153	1	BUSHING	-
21	AT59535	1	DIPPERSTICK	(SUB FOR AT38676) (SUB AT81150)
21	-	1	Part 22	( AT81150 NO LONGER AVAILABLE)
22	AU41933	2	LINK	-
23	JD7759	1	Lubrication Fitting	1/8", STRAIGHT
24	U11649	2	WASHER	-
25	11H221	2	COTTER PIN	3/8" X 2-1/2"
26	T67896	1	LINK	R.H. (SUB FOR U16168) (ALSO ORDER T67895)
27	T67895	1	LINK	L.H. (SUB FOR U16169) (ALSO ORDER T67896)
29	T59452	2	SNAP RING	-
30	U11649	2	WASHER	-
31	11H221	2	COTTER PIN	3/8" X 2-1/2"
28A	AU13556	1	PIN FASTENER	LINKS TO BUCKET CYLINDER
28B	T61038	1	PIN FASTENER	(SUB AU13556)
