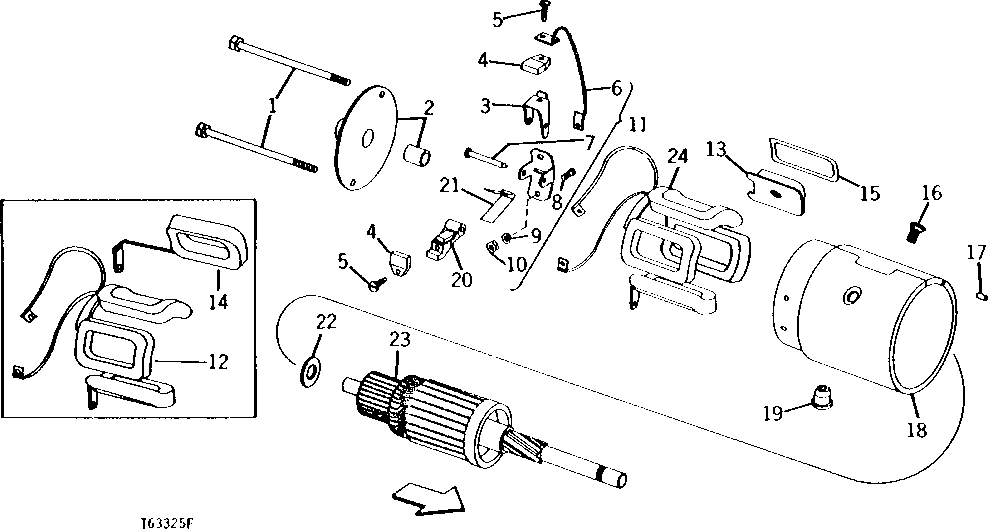

STARTING MOTOR COIL ASSEMBLY, HOUSING AND ARMATURE (GASOLINE) [02C15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T741T	2	BOLT	-
2	AT517T	1	FRAME	-
3	T738T	2	HOLDER	-
4	T735T	4	BRUSH	-
5	37H2	4	Screw	0.164" X 5/8"
6	AT514T	2	WIRING LEAD	-
7	T736T	2	PIN FASTENER	-
8	21H1020	4	SCREW	0.190" X 1/2"
9	12H246	4	LOCK WASHER	0.190"
10	14H778	4	Nut	0.190"
11	AT516T	2	KIT	INCLUDES GROUND LEAD, BRUSH HOLDER PIN, SUPPORT, SCREWS, LOCK WASHERS, AND NUTS
12	AR11105	1	FIELD WINDING COIL	(SUB AR90826)
13	R39857	4	SHOE	(USE WITH DELCO-REMY NO. 1108319)
13	-	4	Part 14	(USE WITH DELCO-REMY NO. 1109576) ( 810601, NO LONGER AVAILABLE)
14	AR11106	1	FIELD WINDING COIL	(SUB AR90826)
15	T743T	4	INSULATOR	-
16	21H1280	4	SCREW	3/8" X 3/4"
17	R11087	1	DOWEL PIN	-
18	-	1	Part 19	(SUB AT18025)
19	R11191	1	GROMMET	-
20	R11290	2	CARBON BRUSH HOLDER	(SUB FOR T739T)
21	T740T	2	SPRING	-
22	R46191	1	WASHER	-
23	AT20663	1	ARMATURE	(USE WITH DELCO-REMY NO. 1108319)
23	AR91814	1	ARMATURE	(USE WITH DELCO-REMY NO. 1109576)
24	AR90826	1	FIELD WINDING COIL	(USE WITH DELCO-REMY NO. 1108319) (SUB FOR AR11105, AR11106 AND AR88016)
24	AR91815	1	FIELD WINDING COIL	(USE WITH DELCO-REMY NO. 1109576)
..	AR91813	1	STARTER MOTOR	(DELCO-REMY NO. 1109576) (SUB FOR AT18025)

STARTING MOTOR COIL ASSEMBLY, HOUSING AND ARMATURE (GASOLINE) [02C15]
