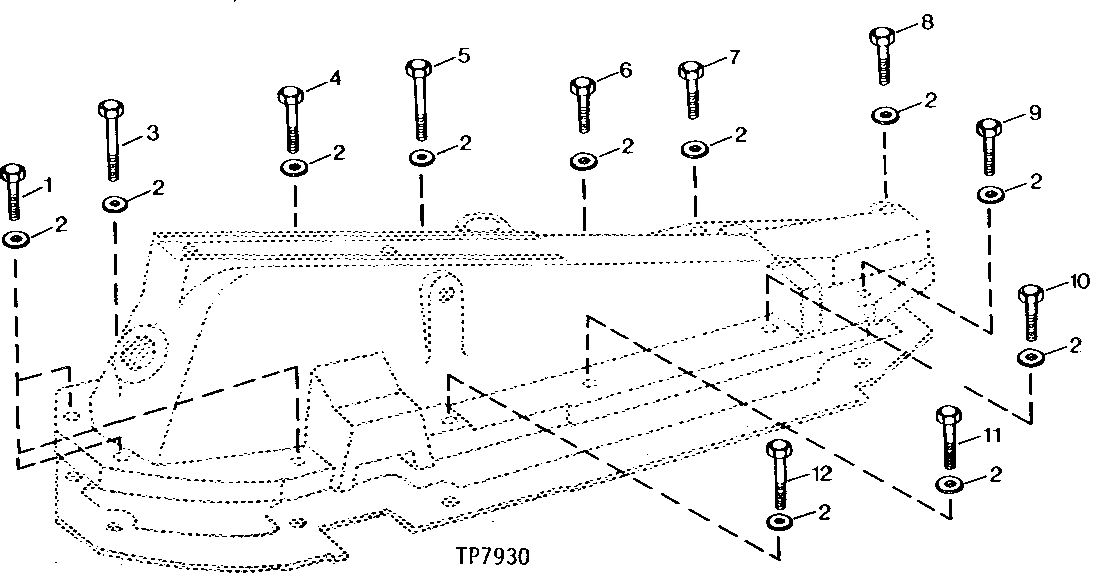

SEAT BASE MOUNTING HARDWARE (WITHOUT ROCKSHAFT) [02B11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2473	3	Cap Screw	HS, SAE 8, 1/2" X 1-3/4"
1	19H2993	3	Cap Screw	1/2"X 1-1/2"
2	T20168	13	Washer	-
3	19H2735	1	Cap Screw	1/2" X 2'
3	19H1990	1	Cap Screw	HS, SAE 8, 1/2" X 2-1/4"
4	19H1721	1	CAP SCREW	1/2" X 1-1/2"
4	19H2473	1	Cap Screw	HS, SAE 8, 1/2" X 1-3/4"
5	19H2644	1	Cap Screw	1/2" X 2-1/2"
5	19H3057	1	Cap Screw	HS, SAE 8, 1/2" X 2-3/4"
6	19H1721	1	CAP SCREW	1/2" X 1-1/2"
6	19H2993	1	Cap Screw	HS, SAE 8, 1/2" X 1-1/2"
7	19H1721	1	CAP SCREW	1/2" X 1-1/2"
7	19H2993	1	Cap Screw	HS, SAE 8, 1/2" X 1-1/2"
8	19H1004	1	CAP SCREW	1/2" X 2-1/4"
8	19H2644	1	Cap Screw	HS, SAE 8, 1/2" X 2-1/2"
9	19H1721	1	CAP SCREW	1/2" X 1-1/2"
9	19H2993	1	Cap Screw	HS, SAE 8, 1/2" X 1-1/2"
10	19H1721	1	CAP SCREW	1/2" X 1-1/2"
10	19H2993	1	Cap Screw	HS, SAE 8, 1/2" X 1-1/2"
11	19H1721	1	CAP SCREW	1/2" X 1-1/2"
11	19H2993	1	Cap Screw	HS, SAE 8, 1/2" X 1-1/2"
12	19H1721	1	CAP SCREW	1/2" X 1-1/2"
12	19H2473	1	Cap Screw	HS, SAE 8, 1/2" X 1-3/4"

SEAT BASE MOUNTING HARDWARE (WITHOUT ROCKSHAFT) [02B11]
