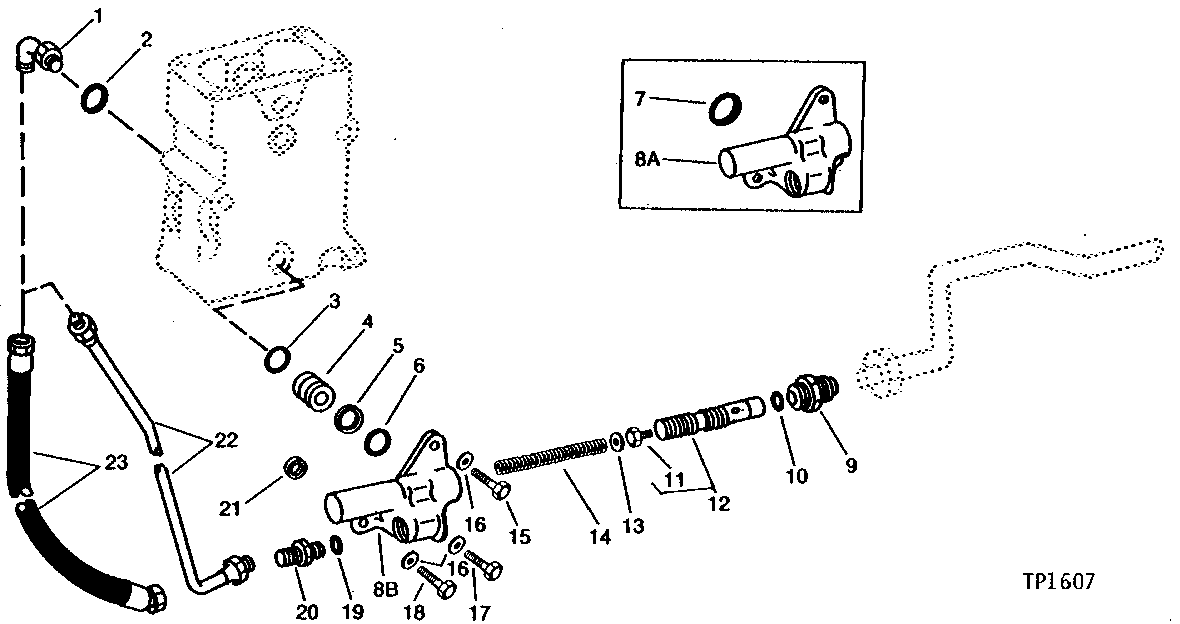

PRESSURE CONTROL VALVE (SERIAL NO. 339545- ) [01H21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT35120	1	Elbow Fitting	(D) 90°
2	R26448	1	O-Ring	(D)
3	R26375	1	O-Ring	(D)
4	R66084	1	FITTING	-
5	L55202	1	Back-Up Ring	(SUB FOR R66085)
6	T13119	1	O-Ring	-
7	R60332	1	O-RING	-
9	R31665	1	Fitting	-
10	R26906	1	O-Ring	(D)
11	R40562	1	APERTURE	-
12	AR65881	1	VALVE	-
13	R33521	2	Shim	0.76 MM (.030")
14	R40072	1	SPRING	-
15	19H2633	1	Cap Screw	3/8" X 1-1/2"
16	12H304	3	Lock Washer	3/8"
17	19H2458	1	Cap Screw	3/8" X 3"
18	19H3483	1	Cap Screw	3/8" X 1-1/8"
19	R26375	1	O-Ring	(D)
20	R27237	1	Fitting	(D) (WITH SELECTIVE CONTROL VALVE OR WITH PTO DRIVEN MOWER)
20	R39112	1	Fitting	(WITHOUT SELECTIVE CONTROL VALVE OR WITHOUT PTO DRIVEN MOWER)
21	R28776	1	O-Ring	-
22	AR91029	1	OIL LINE	(D) (WITHOUT LOADER)
23	AT18976	1	STEERING GEAR	(SUB FOR AW18976) (WITH LOADER)
..	AR91861	1	VALVE	VALVE POPPET, DOUBLE ACTING, SINGLE, WITHOUT LEVER LOCK, USE WITH 5.00 TO 1 FINAL DRIVE RATIO, (SUB FOR AR76093) (INCLUDES (2) AR21837, AR99025, (2) R39171, R62147, R77420, R20922, T22996, T23069, (2) 14H732, 19H1895, (2) 19H3597 AND 24H1625)
8A	R39273	1	HOUSING	(SUB R66083, R26375, R66084, L55202 AND T13119, THIS APPLICATION)
8B	R39273	1	HOUSING	(SUB R66083, R26375, R66084, L55202 AND T13119, THIS APPLICATION)
8B	R66083	1	HOUSING	-

PRESSURE CONTROL VALVE (SERIAL NO. 339545- ) [01H21]
