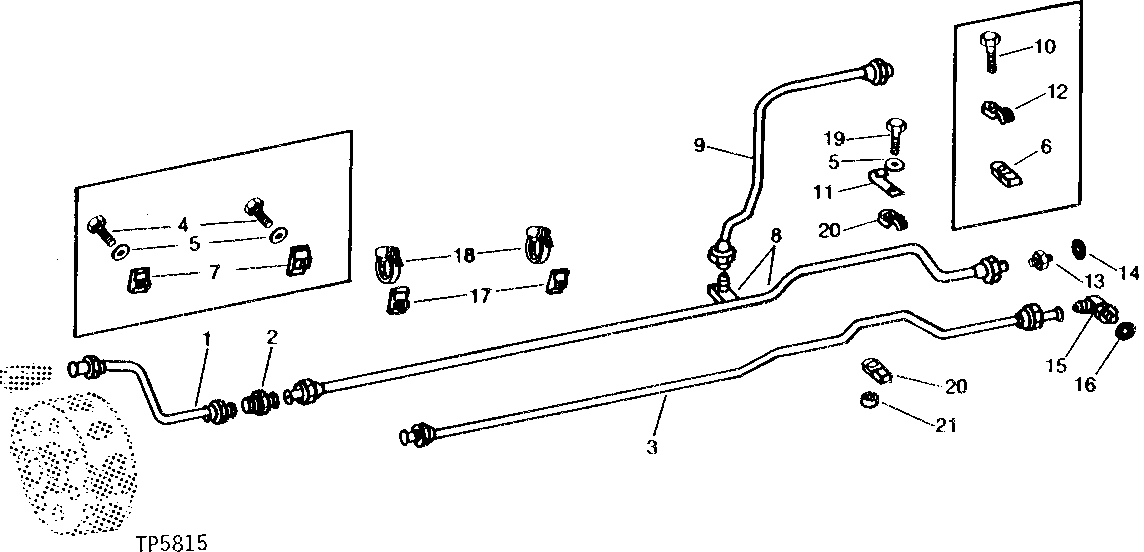

HYDRAULIC PUMP REAR PRESSURE OIL LINES [01I25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT22079	1	OIL LINE	FRONT PRESSURE
2	R34063	1	Fitting	-
3	AT22262	1	OIL LINE	REAR PRESSURE (WITH REVERSER) (MANUAL STEERING)
3	AT22080	1	OIL LINE	REAR PRESSURE (WITHOUT REVERSER) (MANUAL STEERING)
4	19H3239	2	Cap Screw	3/8" X 1-1/4"
5	12H304	3	Lock Washer	3/8"
6	R28539	1	CLAMP	(SUB (2) R27539, 28H860, 12H304 AND 19H1732, THIS APPLICATION)
7	T23054	2	CLAMP	OIL LINER TO CYLINDER BLOCK, (SUB AR21999) (ALSO ORDER R49076)
8	AT23562	1	OIL LINE	REAR PRESSURE (WITHOUT REVERSER) (POWER STEERING)
8	AT23563	1	OIL LINE	REAR PRESSURE (WITH REVERSER) (POWER STEERING)
9	AT23552	1	OIL LINE	REAR PRESSURE (POWER STEERING)
10	19H2284	1	Cap Screw	3/8" X 7/8"
11	B1986R	1	CLIP	(WITH REVERSER)
12	R28538	1	CLAMP	(SUB R27539, 28H860, 12H304 AND 19H1732, THIS APPLICATION)
13	R31665	1	Fitting	-
14	R26906	1	O-Ring	-
15	AR27699	1	Elbow Fitting	90° (MANUAL STEERING)
15	AT20894	1	FITTING	(MANUAL STEERING) (WITHOUT REVERSER) (WITH PTO DRIVEN MOWER)
16	R26375	1	O-Ring	(MANUAL STEERING)
17	R49076	2	SPACER	-
18	AR21999	2	Hose Clamp	(SUB FOR AR21840)
19	19H1732	1	Cap Screw	3/8" X 1-1/4"
20	R27539	2	CLAMP	-
21	28H860	1	Washer	0.423" X 0.675" X 3/8"

HYDRAULIC PUMP REAR PRESSURE OIL LINES [01I25]
