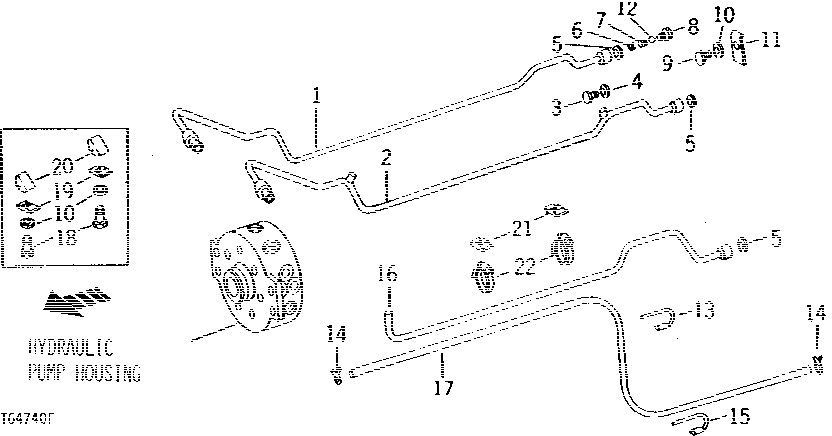

HYDRAULIC PUMP OIL INLET LINES [01I24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT22199	1	OIL LINE	(WITHOUT REVERSER) (MANUAL STEERING)
2	AT22199	1	OIL LINE	(WITHOUT REVERSER) (POWER STEERING)
2	AT22264	1	OIL LINE	(WITH REVERSER) (POWER STEERING)
3	19H2676	1	Cap Screw	3/8" X 1", RETAINER TO CLUTCH CONTROL VALVE
4	R43696	1	Washer	(SUB FOR A4231R) OIL LINER TO CLUTCH CONTROL VALVE (WITH REVERSER)
5	R1662R	3	WASHER	-
6	R39076	1	Guide	(WITHOUT REVERSER)
7	R39078	1	Spring	(WITHOUT REVERSER)
8	T23203	1	VALVE SEAT	(WITHOUT REVERSER)
9	19H3483	1	Cap Screw	3/8" X 1-1/8", RETAINER TO CLUTCH HOUSING (WITHOUT REVERSER)
10	12H304	3	Lock Washer	3/8"
11	T23059	1	RETAINER	(WITHOUT REVERSER) OIL LINES TO CLUTCH HOUSING
12	D2361R	1	Ball	STEEL 1/2" (WITHOUT REVERSER)
13	R44302	1	Tie Band	BLEED TUBE TO BATTERY CABLE (MANUAL STEERING)
14	T19324	2	CLAMP	-
15	R44302	1	Tie Band	BLEED TUBE TO COWL
16	AT22143	1	OIL LINE	OIL COOLER TO CLUTCH HOUSING (WITHOUT REVERSER)
16	AT22263	1	OIL LINE	(WITH REVERSER)
17	T23083	1	TUBE	RESERVOIR TO CLUTCH HOUSING
18	19H3239	2	Cap Screw	3/8" X 1-1/4"
19	T23054	2	CLAMP	(SUB AR21999) (ALSO ORDER R49076)
20	T23053	2	SPACER	(SUB AR21999) (ALSO ORDER R49076)
21	R49076	2	SPACER	-
22	AR21999	2	Hose Clamp	(SUB FOR AR21840)

HYDRAULIC PUMP OIL INLET LINES [01I24]
