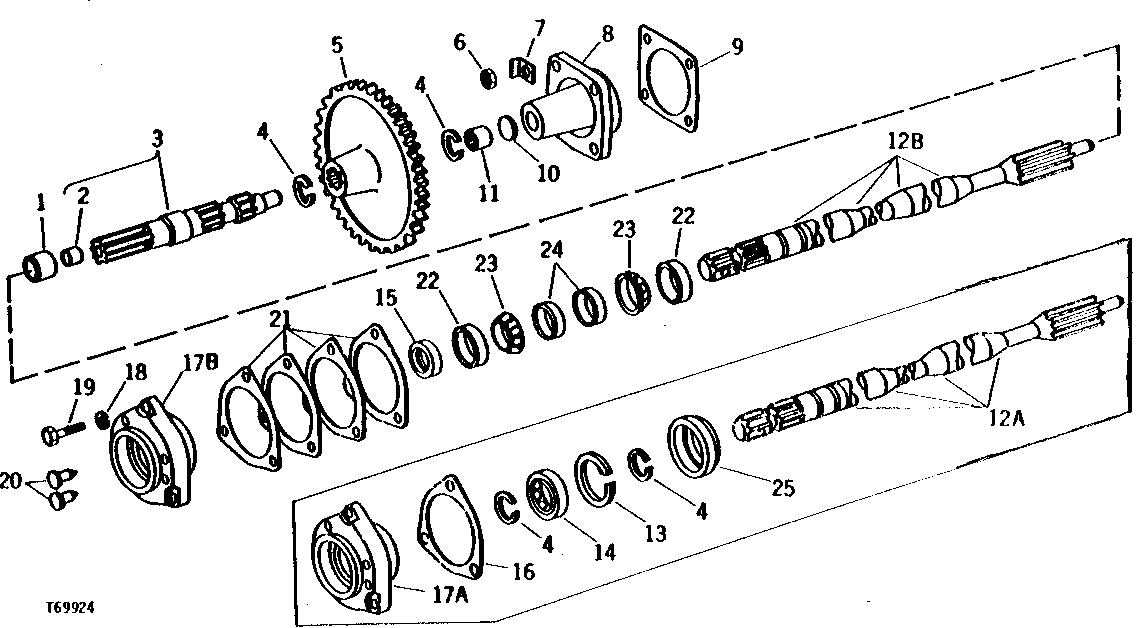

GEARS AND SHAFTS (CONTINUOUS 540 RPM REAR PTO) [01G11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T22128	1	BUSHING	-
2	T22127	1	BUSHING	-
3	AT23224	1	SHAFT	-
4	M2353T	4	Snap Ring	-
5	T22214	1	GEAR	540 RPM (21 AND 73 TEETH)
6	14H812	4	NUT	3/8"
7	R30958	4	LOCK PLATE	-
8	T22234	1	BEARING HOUSING W/O BEARING	-
9	T21997	1	GASKET	-
10	R26656	1	WASHER	-
11	JD8877	1	NEEDLE BEARING	-
13	40M7044	1	Snap Ring	(SUB FOR R47513)
14	JD9344	1	Ball Bearing	-
15	AL56820	1	Seal	(A) (SUB FOR T22069)
16	T22080	1	GASKET	-
18	12H301	3	Lock Washer	1/2"
19	19H2993	3	Cap Screw	1/2" X 1-1/2"
20	R27329	2	Screw	-
21	-	1	Part 23	(B) (B) 0.13 MM (.005") ( R69513 NOT AVAILABLE)
21	-	1	Part 24	(B) (B) 0.13 MM (.005") ( R69514 NOT AVAILABLE)
21	-	1	Part 25	(B) (B) 0.25 MM (.010") ( R69515 NOT AVAILABLE)
21	-	1	Part 26	(B) (B) 0.51 MM (.020") ( R69516 NOT AVAILABLE)
22	JD9125	2	Bearing Cup	(A)
23	JD9065	2	Bearing Cone	(A)
24	R69510	2	Spacer	(A)
25	R69511	1	Bushing	(A)
..	AR93928	1	KIT	FIELD SERVICE, SINGLE 540 RPM PTO THRUST CAPACITY
12A	R47249	1	SHAFT	REAR
12B	R69509	1	Shaft	(A) REAR
17A	R47514	1	BEARING HOUSING W/O BEARING	REAR
17B	R69512	1	Bearing Housing W/O Bearing	(A) REAR

GEARS AND SHAFTS (CONTINUOUS 540 RPM REAR PTO) [01G11]
