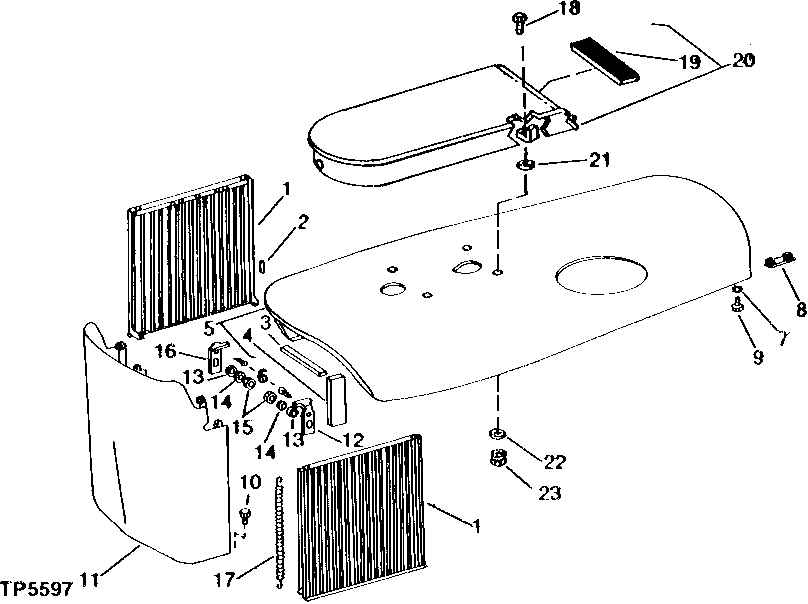

FRONT PLATE, HOOD AND GRILLE ASSEMBLY [02A20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR72950	2	GRILLE	(SUB FOR AT35236) SIDE
2	34H340	4	SPRING PIN	5/16" X 13/16"
3	T21491	2	ISOLATOR	RADIATOR TOP
4	T21490	2	PAD	RADIATOR SIDE
5	AT34902	1	HOOD	(VERTICAL EXHAUST)
5	AT57448	1	HOOD	(VERTICAL EXHAUST) (SUB AR64003 AND (2) R55211)
5	AR64003	1	HOOD	(VERTICAL EXHAUST)
5	AT34903	1	HOOD	(REAR EXHAUST)
5	AT57446	1	HOOD	(REAR EXHAUST)
5	AR64004	1	HOOD	(REAR EXHAUST)
6	11M7012	2	Cotter Pin	3.200 X 16 MM
7	12H331	4	LOCK WASHER	3/8", EXTERNAL TOOTH
8	T25291	2	REINFORCEMENT	-
8	R55211	2	PLATE	-
9	19H1648	4	Cap Screw	3/8" X 3/4"
10	19H3385	8	Cap Screw	1/2" X 1-1/8"
11	AT36272	1	PLATE	FRONT
12	R59519	1	LATCH	(SUB FOR R49524, THIS APPLICATION)
13	24H1302	2	Washer	13/32" X 11/16" X 0.035"
14	12H304	2	Lock Washer	3/8"
15	14H812	2	NUT	3/8"
16	R59519	1	LATCH	(SUB FOR R49524, THIS APPLICATION)
17	R26858	2	SPRING	-
18	19H3467	4	Screw	5/16" X 1"
19	T27098	1	ISOLATOR	-
20	AT69038	1	SHIELD	(SUB AT73571)
21	24H1136	4	Washer	11/32" X 11/16" X 0.065", (SUB FOR T69893)
22	24H1136	4	Washer	11/32" X 11/16" X 0.065"
23	T16464	4	Lock Nut	-

FRONT PLATE, HOOD AND GRILLE ASSEMBLY [02A20]
