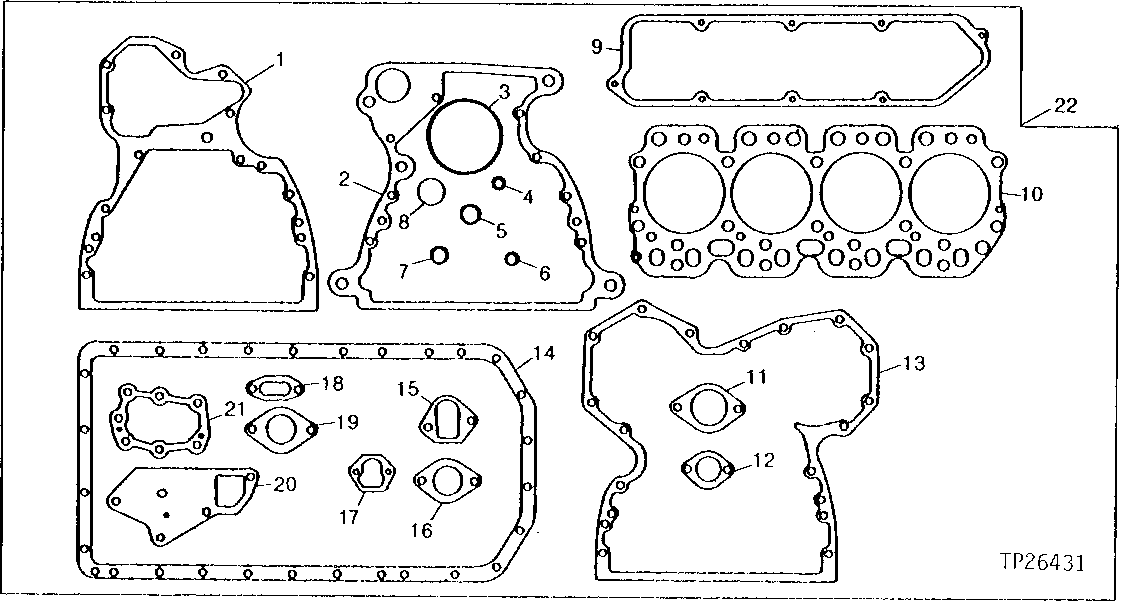

ENGINE OVERHAUL GASKET SET (DIESEL) [02C23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R131794	1	Gasket	(SUB FOR R90648)
2	R97351	1	Gasket	FLYWHEEL HOUSING, (SUB FOR R49516, THIS APPLICATION) (SUB FOR R70483)
3	R48768	4	WASHER	CYLINDER LINER
4	T20304	1	WASHER	TACHOMETER DRIVE SHAFT
5	T13213	1	WASHER	ALUMINUM, OIL DRAIN PLUG
6	R74354	1	O-Ring	(SUB FOR R27166, THIS APPLICATION)
7	R56463	1	O-Ring	(SUB FOR R495R, THIS APPLICATION)
8	T20328	1	Gasket	OIL FILTER CAP
9	R73521	1	GASKET	ROCKER ARM COVER, (ALSO ORDER (8) AR103811) (SUB FOR T20075 AND AR100596)
10	R125863	1	GASKET	CYLINDER HEAD, (SUB FOR R59448, R80242 AND R91878 OR R92425)
11	R81275	1	Gasket	AIR INLET, (SUB FOR T20159, THIS APPLICATION)
12	T20219	1	GASKET	THERMOSTAT HOUSING
13	R121314	1	Gasket	TIMING GEAR COVER, (SUB FOR T20155 OR R97454 OR R119269)
14	R119360	1	GASKET	(SUB FOR T24535) OIL PAN
15	T20364	1	GASKET	(SUB R78366) INJECTION PUMP GEAR COVER
15	R125066	1	Gasket	(SUB FOR R69260 AND R78366 OR R97773)
16	R90658	4	Gasket	EXHAUST MANIFOLD, (SUB FOR T20006) (ALL T20006 GASKETS MUST BE REPLACED AT THE SAME TIME. DO NOT MIX T20006 AND R90658)
17	R520618	1	Gasket	FUEL PUMP, (SUB FOR R27285, R97350)
18	R97352	1	Gasket	OIL FILTER INLET, (SUB FOR T20336)
19	T20215	1	GASKET	THERMOSTAT COVER
20	T20243	1	Gasket	WATER PUMP COVER
21	T20273	1	GASKET	TIMING GEAR COVER, OPENING COVER
22	RE16922	1	GASKET KIT	(SUB FOR RE12459 AND AR100424) (ALSO ORDER (4) AR71618, (4) RE32011 AND (4) R48000) (USE IF AVAILABLE)
22	RE501579	1	GASKET KIT	(SUB FOR RE38857) (ALSO ORDER (4) AR71618, (4) RE32011 AND (4) R48000)
