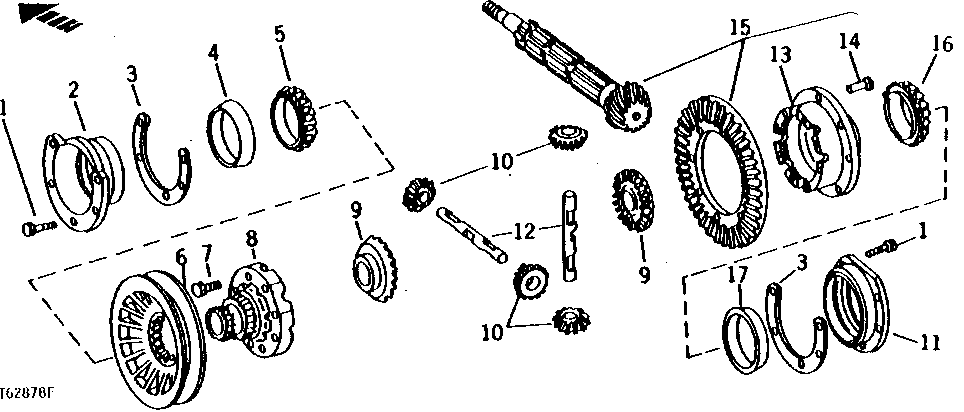

DIFFERENTIAL HOUSING AND DRIVE SHAFT [01G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T22874	10	BOLT	-
2	T21433	1	BEARING HOUSING W/O BEARING	L.H.
3	T21434	1	SHIM	.08 MM (.003")
3	T21435	1	SHIM	.13 MM (.005")
3	T21436	1	SHIM	.25 MM (.010")
4	JD7425	1	Bearing Cup	L.H.
5	JD8147	1	Bearing Cone	L.H.
6	T21596	1	BRAKE DRUM	(WITH PARKING BRAKE)
7	T21430	8	CAP SCREW	-
8	T21974	1	HOUSING	DIFFERENTIAL, L.H.
9	T118949	2	BEVEL GEAR	(USE WITH T118950) (SUB FOR T113068)
9	T29394	2	BEVEL GEAR	(18 TEETH) (SUB (2) T118949 AND (4) T118950)
10	T21876	4	BEVEL GEAR	(11 TEETH) (SUB FOR T37822) (SUB (2) T118949 AND (4) T118950)
10	T118950	4	BEVEL GEAR	(USE WITH T118949) (SUB FOR T113069)
11	T21432	1	BEARING HOUSING W/O BEARING	R.H.
12	T21875	2	PINION SHAFT	-
13	T30253	1	HOUSING	(ALSO ORDER (8) T30254) R.H.
13	T149743	1	HOUSING	(ALSO ORDER (8) T152922)
14	T30254	8	RIVET	7/16" X 1-11/16", 7/16" X 1-11/16"
14	T152922	8	RIVET	1/2" X 1 5/8"
15	AT21622	1	DIFFERENTIAL	(MARKED T30253) WITH RING GEAR (35 TEETH) AND BEVEL PINION (8 TEETH) (CONTAINS T30253 AND (8) T30254) (MARKED T21401) (MARKED T21402)
16	JD8946	1	Bearing Cone	R.H.
17	JD8206	1	Bearing Cup	R.H.

DIFFERENTIAL HOUSING AND DRIVE SHAFT [01G09]
