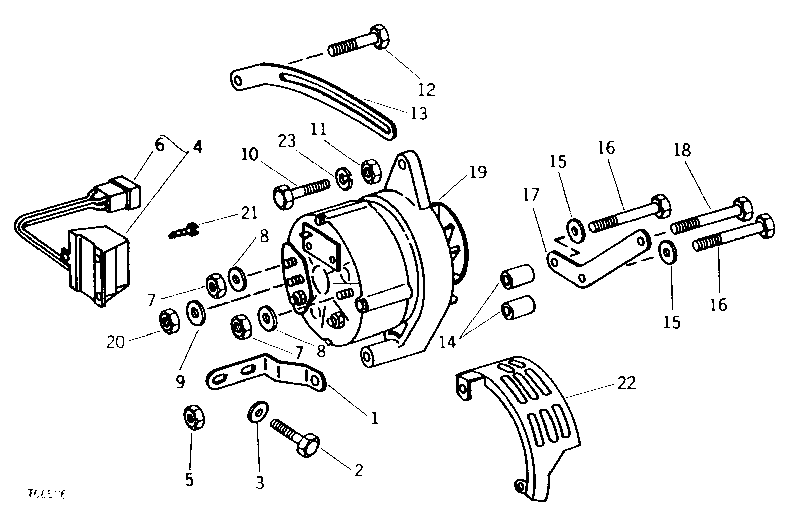

ALTERNATOR AND REGULAR ATTACHING PARTS [02C18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R38372	1	BRACKET	ALTERNATOR, REAR
2	19H2284	2	Cap Screw	3/8" X 7/8"
3	24H1305	2	Washer	13/32" X 13/16" X 0.065"
4	AR77485	1	VOLTAGE REGULATOR	(MOTOROLA NO. 8RH2004B) (MOTOROLA NO. 8RH2004B) (SUB FOR AT21815)
5	14H812	1	NUT	3/8"
6	T24166	1	Electrical Connector Assy	-
7	14H778	2	Nut	0.190"
8	12H295	2	Lock Washer	INTERNAL-TOOTH, NO. 10
9	12H297	1	Lock Washer	1/4"
10	19H2705	1	Cap Screw	5/16" X 1"
11	24H1136	1	Washer	11/32" X 11/16" X 0.065"
12	19H3065	1	Cap Screw	3/8" X 2"
13	R108404	1	Strap	(SUB FOR T20204 AND R107734)
14	28H2547	2	Spacer	3/8" X 1"
15	24H1304	2	WASHER	13/32" X 23/32" X 0.120"
16	19H2458	2	Cap Screw	3/8" X 3"
17	T20202	1	Bracket	ALTERNATOR FRONT
18	19H2128	1	CAP SCREW	3/8" X 3"
19	AR38458	1	ALTERNATOR	(MOTOROLA NO. RA12NJD453-S) (MOTOROLA NO. A12NJD452) (SUB FOR AT21619)
19	TY24306	1	ALTERNATOR	(SUB FOR TY1427) (35 AMPERE) (MOTOROLA) (REMANUFACTUED)
20	14H786	1	Nut	1/4"
21	37H94	3	Screw	0.216" X 1/2"
22	R122848	1	Shield	(SUB FOR R56012)
23	12H303	1	Lock Washer	5/16"

ALTERNATOR AND REGULAR ATTACHING PARTS [02C18]
