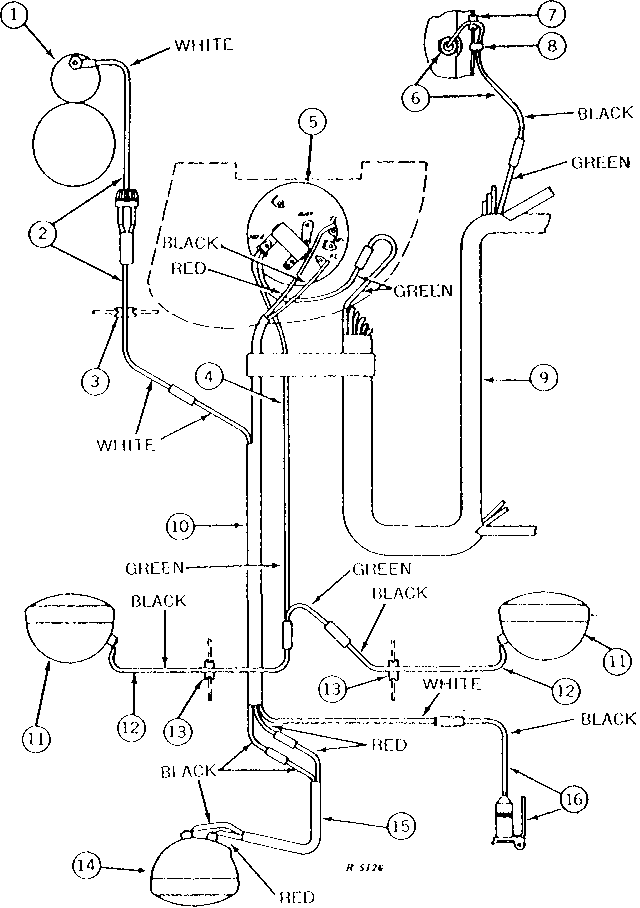

TWO HEAD LAMP WIRING (GASOLINE AND LP-GAS) [01F06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY6691	1	STARTER MOTOR	(A) (SUB FOR AR11305, AR11160 OR TY1435) (CONTAINS RE39838) (12-VOLT)(REMANUFACTURED)
1	AR11161	1	STARTER MOTOR	(B) (SUB FOR AR11305) (SUB TY6694) (12-VOLT)(DELCO-REMY NO.1107578)
1	TY6694	1	STARTER MOTOR	(B) (SUB FOR AR11305, AR11161 OR TY1456) (CONTAINS RE39838) (12-VOLT)(REMANUFACTURED)
1	AR60085	1	STARTER MOTOR	(B) (SUB FOR AR11305 OR AR11161) (SUB TY6722) (12-VOLT)(REMANUFACTURED)
1	TY6722	1	STARTER MOTOR	(B) (SUB FOR AR60085) (CONTAINS RE39838) (12-VOLT)(REMANUFACTURED)
1	AR11160	1	STARTER MOTOR	(A) (12-VOLT) (DELCO-REMY NO. 1107350) (SUB FOR AR11300) (SUB TY6691)
2	AR26756	1	WIRING LEAD	-
3	R26941	1	Grommet	-
4	AR28418	1	WIRING HARNESS	-
4	AR28419	1	WIRING HARNESS	(ST) (R.H. FENDER) (NLA)
4	AR27616	1	WIRING HARNESS	(ST) (L.H. FENDER)
4	B1986R	2	CLIP	(ST) (WIRING HARNESS TO CASE COVER)
5	AR28401	1	SWITCH	(LIGHT)
6	AR33479	1	LAMP	(DASH) (SUB FOR AR26757 OR RE13195)
7	A3411R	1	Grommet	-
8	F2084R	1	CLIP	-
9	AR28808	1	WIRING HARNESS	(GASOLINE) (SUB FOR AR26576) (SUB AR47659)
9	AR28809	1	WIRING HARNESS	(LP-GAS) (SUB FOR AR26577) (SUB AR47658)
10	AR26573	1	WIRING HARNESS	LIGHT SWITCH TO REAR LAMP, (SUB AR28929)
10	AR28929	1	WIRING HARNESS	LIGHT SWITCH TO REAR LAMP
11	14H1040	2	Nut	1/2"
11	12H301	2	Lock Washer	1/2"
11	AR28166	1	LAMP	(12-VOLT) (ST) (SUB FOR AR27574)
11	24H1355	2	Washer	37/64" X 1-1/8" X 0.120", (ST)
11	24H1111	2	Washer	(RC AND HC)
11	AT13381	1	HEADLIGHT	(12-VOLT)
11	AA7322R	1	LAMP	(12-VOLT) (RC AND HC) (SUB AT13381)
11	A2743R	2	WASHER	(ST)
12	-	2	Part 29	(SWITCH TO SIDE LAMP) 483MM (19") (SUB FOR AR27239) (MAKE FROM R66319, R32016, R65597, T28583 AND R32027)
13	R26941	2	Grommet	(RC AND HC)
13	R1134R	2	Eyelet	(ST)
14	14H1040	1	Nut	1/2"
14	12H301	1	Lock Washer	1/2"
14	AR77326	1	FLOODLAMP	(SUB FOR AR28227, AT16288 OR AR26574) (12-VOLT)
14	AR26574	1	TAIL LAMP	(12-VOLT) (SUB AR77326)
15	AR26575	1	WIRING HARNESS	LIGHT SWITCH TO REAR LAMP
15	R21551	1	CLIP	-
16	AR26571	1	SOCKET	-
16	21H1301	2	SCREW	0.190" X 1/2"
16	12M7060	2	Washer	0.209"
16	14H778	2	Nut	0.190"
16	AR40710	1	PLUG	(SUB FOR AA5691R) (INCLUDES AR5692R) (FI)
16	AA5692R	1	ELEC. CONNECTOR TERMINAL	-
..	R44302	1	Tie Band	-
