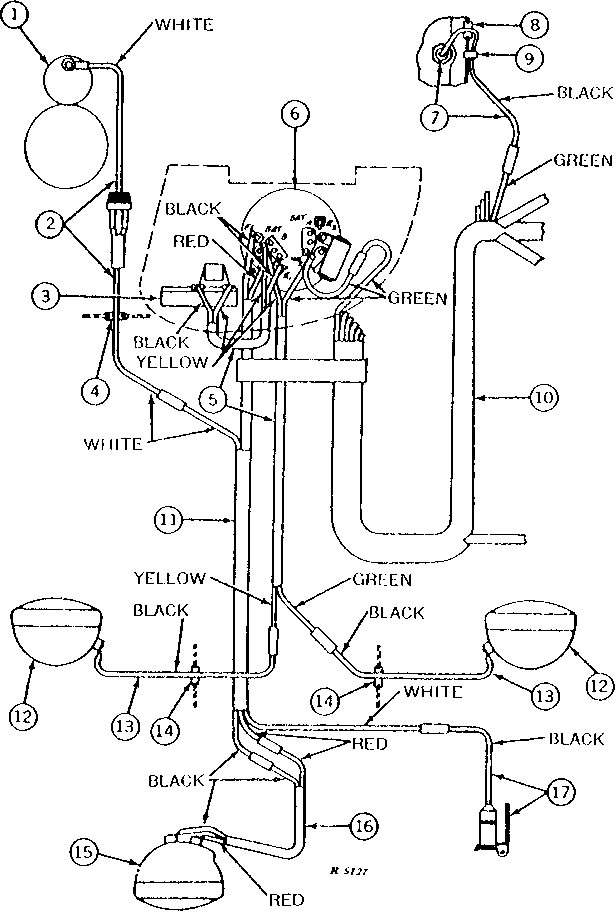

TWO HEAD LAMP WIRING (DIESEL) [01F08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY6703	1	STARTER MOTOR	(SUB FOR AR11138, AR40134 OR TY6622) (CONTAINS RE39061) (24-VOLT) (REMANUFACTURED)
1	AR40134	1	STARTER MOTOR	(24-VOLT) (DELCO-REMY NO. 1113190) (SUB FOR AR28053 OR AR11138) (SUB TY6703)
1	SE501445	1	STARTER MOTOR	(REMANUFACTURED FOR TY6703)
2	AR26756	1	WIRING LEAD	-
3	AR27238	1	RESISTOR	(NLA)
4	R26941	1	Grommet	-
5	AR27240	1	WIRING HARNESS	(RC AND HC) (LIGHT SWITCH TO SIDE LAMP) (NLA)
5	AR27615	1	WIRING HARNESS	(R.H. FENDER) (ST)
5	AR27616	1	WIRING HARNESS	(L.H. FENDER) (ST)
5	B1986R	2	CLIP	(ST)
6	AR28402	1	SWITCH	(LIGHT)
7	AR33479	1	LAMP	(DASH) (SUB FOR AR26757 OR RE13195)
8	A3411R	1	Grommet	-
9	F2084R	1	CLIP	-
10	AR28810	1	WIRING HARNESS	(SUB FOR AR26582) (SUB AR47657)
11	AR28929	1	WIRING HARNESS	(LIGHT SWITCH TO REAR LAMP) (SUB FOR AR26573)
12	14H1040	2	Nut	1/2"
12	12H301	2	Lock Washer	1/2"
12	24H1355	2	Washer	37/64" X 1-1/8" X 0.120", (ST)
12	A2743R	2	WASHER	(ST)
12	AR28166	1	LAMP	(12-VOLT) (ST) (SUB FOR AR27574)
12	AT13381	1	HEADLIGHT	(12-VOLT)
12	AA7322R	1	LAMP	(12-VOLT) (SUB AT13381) (RC AND HC)
12	24H1111	2	Washer	(RC AND HC)
13	-	2	Part 25	(SWITCH TO SIDE LAMP) (MAKE FROM R66319, R32016, R65597, T28583 AND R32027)
14	R26941	2	Grommet	(RC AND HC)
14	R1134R	2	Eyelet	(ST)
15	14H1040	1	Nut	1/2"
15	12H301	1	Lock Washer	1/2"
15	AR77326	1	FLOODLAMP	(SUB FOR AR28227, AT16288 OR AR26574)
15	AR26574	1	TAIL LAMP	(SUB AR77326)
16	AR26575	1	WIRING HARNESS	(LIGHT SWITCH TO REAR LAMP)
16	R21551	1	CLIP	-
17	AR26571	1	SOCKET	-
17	21H981	2	SCREW	0.190" X 1/2"
17	12M7060	2	Washer	0.209"
17	14H778	2	Nut	0.190"
17	AR40710	1	PLUG	(SUB FOR AA5691R) (INCLUDES AA5692R) (FI)
17	AA5692R	1	ELEC. CONNECTOR TERMINAL	-
..	R44302	1	Tie Band	-
