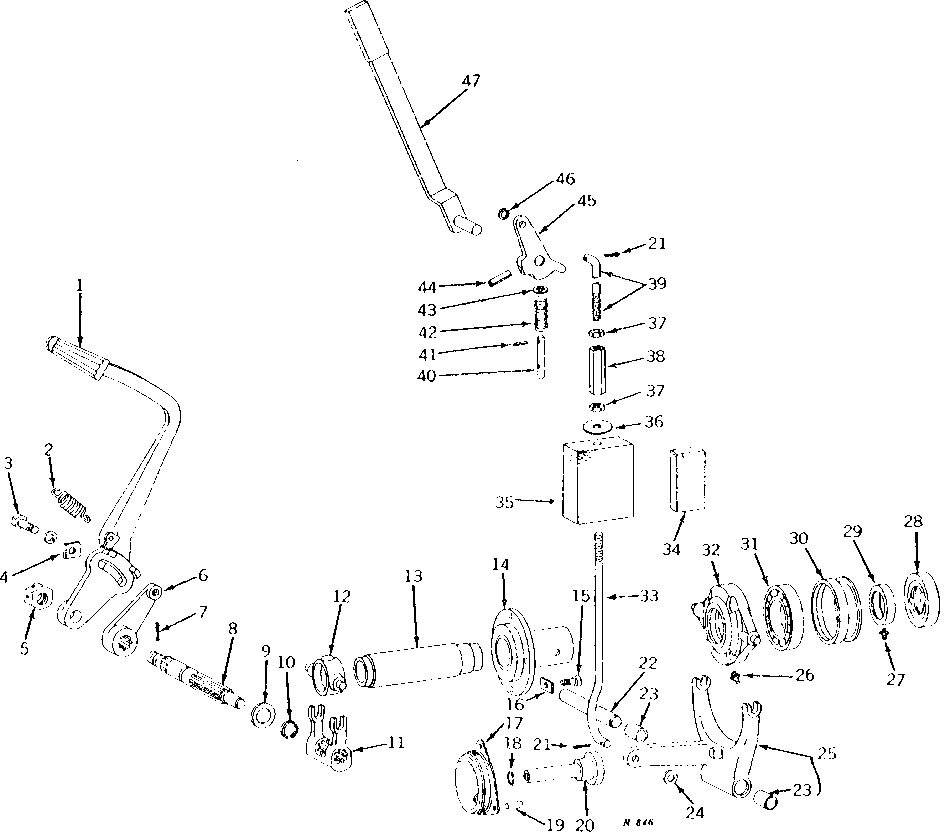

TRANSMISSION AND PTO CLUTCH CONTROLS [02B09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27304	1	PEDAL	(NLA)
2	R26833	1	EXTENSION SPRING	-
3	12H301	1	Lock Washer	1/2"
3	19H1721	1	CAP SCREW	1/2" X 1-1/2"
4	R27305	1	STRAP	-
5	C1104R	1	NUT	-
6	R26652	1	LEVER	-
7	11M7083	1	Cotter Pin	0.126" X 1.969"
8	R26803	1	SHAFT	(SUB R44277 AND R41180)
8	R31394	1	SHAFT	(USE WITH R31393) (SUB R44277 AND R41180)
8	R44277	1	SHAFT	(USE WITH R41180)
9	24H1477	1	Washer	1-5/32" X 1-3/4" X 0.060"
10	R26643	1	Snap Ring	-
11	R31393	1	FORK	(USE WITH R31394)
11	R41180	1	FORK	(USE WITH R44277)
11	R27034	1	FORK	(SUB R41180 AND R44277)
12	AR32182	1	SHIFT COLLAR	(MARKED R27301 OR R33402) (SUB FOR AR26683)
13	R27303	1	TUBE	-
14	AR26485	1	SUPPORT	(MARKED R26664)
15	19H2284	4	Cap Screw	3/8" X 7/8"
16	R30958	4	LOCK PLATE	-
17	RE20728	1	SHOE	(A) (SUB FOR AR26483)
18	B2762R	1	O-Ring	(A)
19	R26650	3	Dowel Pin	(A)
20	R32272	1	SHAFT	(A) (SUB FOR AR26684)
21	11M7015	2	Cotter Pin	3.200 X 25 MM
22	R26647	1	PIN	(A)
23	R776R	2	BUSHING	(A)
24	24H1341	1	Washer	(A) 17/32" X 15/16" X 0.060"
25	AR32594	1	FORK	(A) (MARKED R26653 OR R33958) (SUB FOR AR26484)
26	JD7797	1	Lubrication Fitting	(A) 1/4"
27	JD7797	1	Lubrication Fitting	1/4"
28	AM3983T	1	THRUST BEARING	-
29	R26667	1	LOCKING COLLAR	-
30	R26666	1	SHIFT COLLAR	(A)
31	AR27447	1	BALL BEARING	(A)
32	AR27452	1	SLEEVE	(A) (MARKED R26805)
33	R26651	1	ROD	(A) (NLA)
34	R28123	1	Pad	(SUB FOR R27041) (LESS PTO)
35	R26644	1	PAD	(A)
36	24H1352	1	Washer	(A) 9/16" X 2" X 0.060"
37	14H971	2	NUT	(A) 1/2"
38	R26685	1	TURNBUCKLE	(A)
39	R26684	1	BOLT	(A)
40	R26683	1	PIN FASTENER	(A)
41	34H249	1	Spring Pin	(A) 1/8" X 7/8"
42	R66064	1	SPRING	(A) (SUB FOR R1769R)
43	24H1325	1	Washer	(A) 15/32" X 59/64" X 0.065"
44	34H351	1	Spring Pin	(A) 3/8" X 1-1/2"
45	R26682	1	ARM	(A)
46	24H1227	1	Washer	(A) 17/32" X 13/16" X 0.060"
47	AR26583	1	LEVER	(A) (NLA)

TRANSMISSION AND PTO CLUTCH CONTROLS [02B09]
