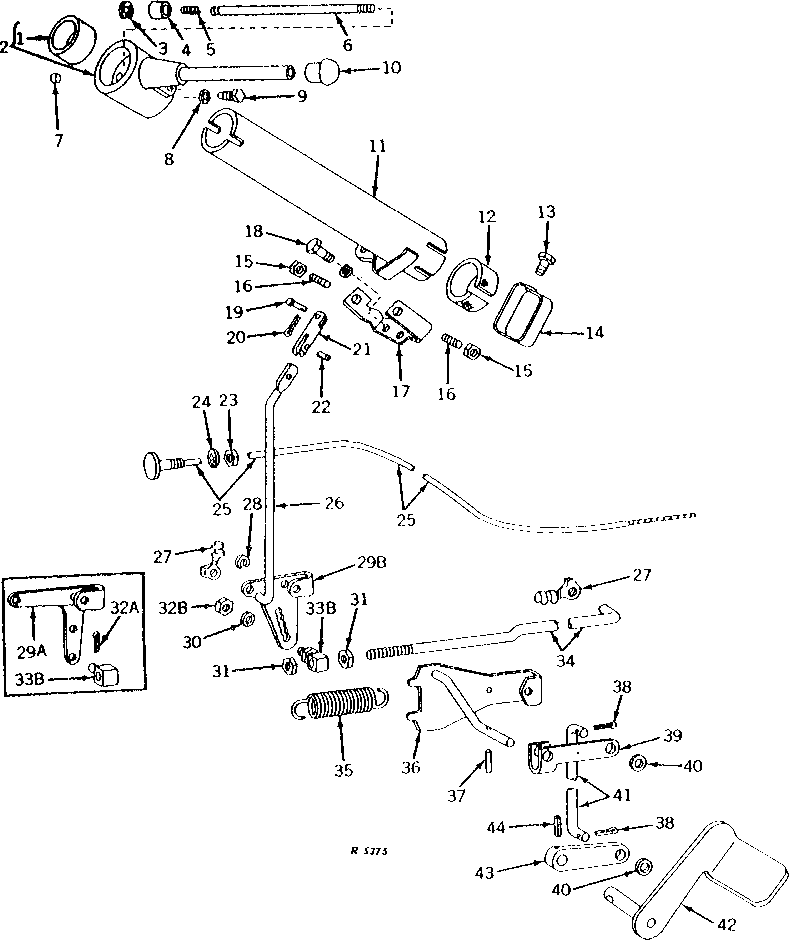

THROTTLE CONTROLS (GASOLINE AND LP-GAS) [01E16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27075	1	BUSHING	-
2	AR30472	1	HUB	(MARKED R27072) (SUB FOR AR26614)
3	R30828	1	SNAP RING	-
4	R38377	1	WASHER	(ALSO ORDER R38376) (SUB FOR R26952)
5	R28009	1	SPRING	-
6	R38376	1	LEVER	(ALSO ORDER R38377) (SUB FOR R26669)
7	R51114	1	DOWEL PIN	-
8	12H310	1	Lock Washer	3/8"
9	R28007	1	BOLT	-
10	R26670	1	KNOB	-
11	AR26592	1	TUBE	-
12	R26958	1	ISOLATOR	-
13	19H1227	1	Cap Screw	1/4" X 1/2"
14	AR26613	1	CLAMP	-
15	14H611	2	Nut	5/16"
16	R32585	1	SET SCREW	-
17	R28008	1	BRACKET	-
18	19H1731	2	Cap Screw	3/8" X 1"
18	12H304	2	Lock Washer	3/8"
19	R27077	1	Pin Fastener	-
20	11M7077	1	Cotter Pin	0.063" X 0.984"
21	R26671	1	LINK	-
22	34H275	1	Spring Pin	3/16" X 1/2"
23	14H774	1	Nut	3/8"
24	12H310	1	Lock Washer	3/8"
25	AR27301	1	PUSH PULL CABLE	-
26	R27076	1	ROD	(NO LONGER AVAILABLE)
27	R26524	2	Clip	R.H.
28	F3396R	1	Snap Ring	-
30	24H1287	1	Washer	9/32" X 5/8" X 0.065"
30	R32305	1	WASHER	-
31	14H850	2	NUT	1/4"
34	R26965	1	ROD	(NLA)
35	R26677	1	SPRING	-
36	AR44417	1	ARM	(SUB FOR AR26615) (NLA)
37	34H312	1	Spring Pin	1/4" X 1"
38	11M7015	2	Cotter Pin	3.200 X 25 MM
39	R26963	1	LEVER	(SUB R31396 AND R31397) (SUB FOR R26960)
39	R31396	1	LEVER	-
40	24H1305	2	Washer	13/32" X 13/16" X 0.065"
41	R31397	1	PIN FASTENER	-
41	R26964	1	ROD	(SUB R31397)
42	AR44745	1	PEDAL	(SUB FOR AR26775)
43	R31396	1	LEVER	-
43	R26963	1	LEVER	(SUB R31396 AND R31397) (SUB FOR R26960)
44	34H312	1	Spring Pin	1/4" X 1"
29A	R26955	1	BELLCRANK	(SUB R32304 AND R32305)
29B	R30987	1	BELLCRANK	(SUB R32304 AND R32305)
29B	R32304	1	BELLCRANK	-
32A	11M7082	1	Cotter Pin	2.500 X 25 MM
32B	14H649	1	Nut	1/4"
33A	R27885	1	SWIVEL	(SUB AH77100 AND 14H649)
33B	AA5302R	1	BALL JOINT	(SUB AH77100)

THROTTLE CONTROLS (GASOLINE AND LP-GAS) [01E16]
