Открытый узел

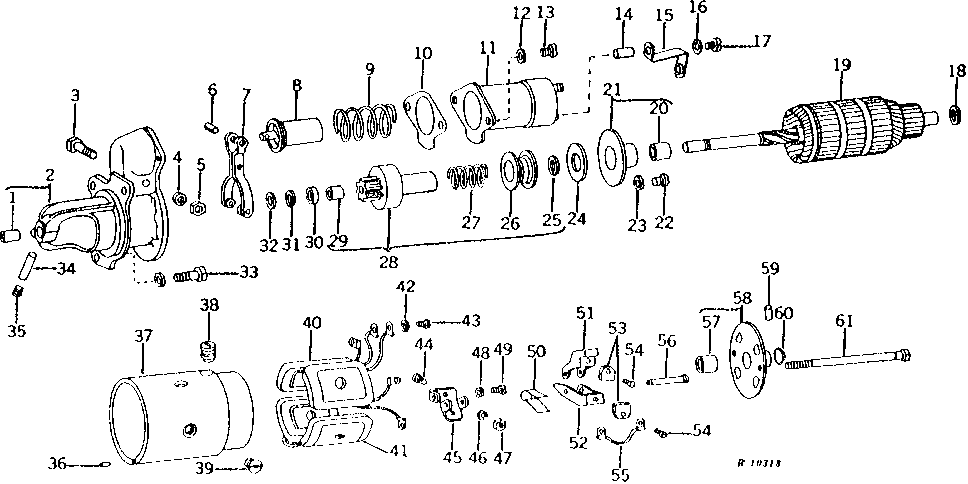

STARTER(AR60085)(12-VOLT)(LP-GAS) (ENGINE SERIAL NO. 029016- ) [01G19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T17987	1	BUSHING	-
2	AR63943	1	HOUSING	-
3	T11672	1	CAP SCREW	-
4	12H303	1	Lock Washer	5/16"
5	14H611	1	Nut	(SUB FOR T11682)
6	34H279	1	SPRING PIN	3/16" X 13/16"
7	T18113	1	SHIFTER	(SUB FOR T11674)
8	AT15147	1	PLUNGER	-
9	R81176	1	COMPRESSION SPRING	(SUB FOR T11675)
10	T17058	1	GASKET	-
11	AR68304	1	SOLENOID	(DELCO-REMY NO. 1114294 OR 1114356) (SUB FOR R11240)
11	TY6690	1	SOLENOID	(REMANUFACTURED)
11	SE501441	1	SOLENOID	(REMANUFACTURED FOR TY6690)
12	12H302	2	Lock Washer	1/4"
13	21H1310	2	SCREW	1/4" X 1/2"
14	T19608	1	BUSHING	-
15	R11235	1	FITTING	-
15	R57025	1	BRACKET	(SUB FOR R57025)
16	12M7060	1	Washer	0.209"
17	21H1298	1	Screw	0.190" X 3/8"
17	T19610	1	CAP SCREW	-
18	R11096	1	WASHER	-
19	AT15138	1	ARMATURE	(SUB FOR AR11111)
20	T11684	1	BUSHING	(SUB AR62967)
20	820148	1	BUSHING	(PARTS FOR 820149)
21	AR62967	1	BEARING	(SUB FOR T11683 OR 820149)
22	21H1127	2	SCREW	0.190" X 7/16"
23	12H246	2	LOCK WASHER	0.190", (SUB FOR H23195)
24	R11095	1	WASHER	-
25	R11118	1	WIRE	LOCK
26	R11225	1	LOCKING COLLAR	(SUB FOR 1838436) (SUB AR57094)
27	37517	1	SPRING	-
28	AR57094	1	DRIVE	(SUB FOR AR11108 OR AT15140)
29	1873796	1	BUSHING	-
30	R11116	1	SPACER	-
31	R11117	1	SNAP RING	-
32	R11080	1	WASHER	-
33	19H2552	3	CAP SCREW	3/8" X 1-1/8"
33	12H304	3	Lock Washer	3/8"
34	R40337	1	WICK	(SUB FOR R11108)
35	15H566	2	PIPE PLUG	1/8", (SUB FOR R11085)
36	R11087	1	DOWEL PIN	-
37	-	1	Part 43	(ORDER TY6722)
38	R11236	1	GROMMET	-
39	21H1280	8	SCREW	3/8" X 3/4", (SUB FOR R11104)
40	R11237	1	FIELD WINDING COIL	-
41	T11680	2	SHOE	-
42	12M7060	1	Washer	0.209"
43	21H1298	1	Screw	0.190" X 3/8"
44	21H1301	4	SCREW	0.190" X 1/2"
45	AT516T	2	KIT	-
46	12H246	4	LOCK WASHER	0.190"
47	14H778	4	Nut	0.190"
48	12H315	1	Lock Washer	0.164"
49	21H1292	1	SCREW	0.164" X 1/4"
50	T740T	2	SPRING	-
51	R11290	2	CARBON BRUSH HOLDER	(SUB FOR T739T)
52	T738T	2	HOLDER	-
53	R11239	4	BRUSH	-
54	37H79	4	SCREW	1/4" X 5/8", (ALSO ORDER 12M7084)
55	AT514T	2	WIRING LEAD	-
56	T736T	2	PIN FASTENER	-
57	R61932	1	BUSHING	(SUB FOR T10794 OR T11739)
58	R11238	1	END PLATE	-
59	H23193	1	FELT	-
60	30H9	1	Plug	3/4"
61	R11243	2	CAP SCREW	-
..	AR60085	1	STARTER MOTOR	(SUB TY6722) (DELCO-REMY NO.1109147)
..	TY6722	1	STARTER MOTOR	(SUB FOR AR60085) (REMANUFACTURED)

STARTER(AR60085)(12-VOLT)(LP-GAS) (ENGINE SERIAL NO. 029016- ) [01G19]
