STARTER(AR11138) (24-VOLT) (DIESEL) [01G22]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

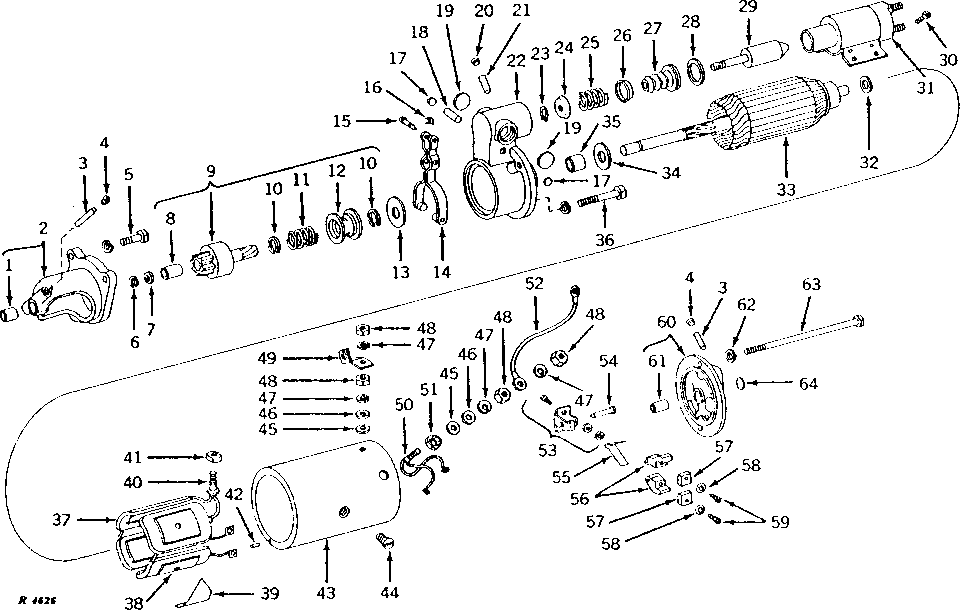

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T11743	1	BUSHING	-
2	AR11127	1	HOUSING	-
3	R40337	2	WICK	(SUB FOR 1909654)
4	15H566	2	PIPE PLUG	1/8", (SUB FOR R11085)
5	19H2552	3	CAP SCREW	3/8" X 1-1/8"
5	12H304	3	Lock Washer	3/8"
6	R11117	1	SNAP RING	-
7	R11116	1	SPACER	-
8	R11119	1	BUSHING	-
9	AR88880	1	STARTER MOTOR DRIVE	(SUB FOR AR11133 OR AR84239)
10	R11118	2	WIRE	(SUB FOR R11227)
11	R11226	1	SPRING	-
12	R11225	1	LOCKING COLLAR	(SUB AR88880)
13	R11095	1	WASHER	-
14	AR11128	1	LEVER	-
15	R11222	1	PIN	-
16	R11223	1	RETAINER	-
17	R11213	2	PLUG	-
18	R11215	1	DOWEL PIN	-
19	30H16	2	PLUG	1-3/16"
20	R11016	1	PIPE PLUG	-
21	R11201	1	WICK	(SUB FOR R11015)
22	AR11126	1	HOUSING	-
23	R11026	1	Snap Ring	-
24	AR40395	1	SOLENOID	(SUB FOR R11129)
25	R11128	1	SPRING	-
26	R11126	1	ROUND RETAINER	-
27	R11127	1	BOOT	-
28	R11221	1	WASHER	-
29	AR11132	1	PLUNGER	-
30	T19909	4	SCREW	(SUB FOR 1916529)
31	AR40395	1	SOLENOID	(DELCO-REMY NO. 1119858) (DELCO-REMY NO. 1115513) (SUB FOR AR11129)
31	TY6689	1	SOLENOID	(REMANUFACTUERED) (NLA)
32	R11096	1	WASHER	-
33	AR11120	1	ARMATURE	-
34	R11214	1	WASHER	-
35	R11212	1	BUSHING	-
36	12H303	4	Lock Washer	5/16"
36	19H1949	4	Cap Screw	5/16" X 2-1/2"
37	AR11122	1	ELECTRICAL COIL	-
38	1931784	4	SHOE	-
39	R11253	2	INSULATOR	-
40	R11207	1	STUD	-
41	R11058	1	BUSHING	-
42	R11087	1	DOWEL PIN	-
43	-	1	Part 46	(ORDER TY6703)
43	SE501445	1	STARTER MOTOR	(REMANUFACTURED FOR TY6703)
44	21H1280	4	SCREW	3/8" X 3/4", (SUB FOR T18353)
45	R11000	2	WASHER	-
46	24M7096	2	Washer	10.500 X 18 X 1.600 MM
47	-	1	Part 51	(NOT REQUIRED)
48	14H732	4	Nut	3/8"
49	R11228	1	ELECTRICAL CONNECTOR ASSY	-
50	AR11139	1	ELEC. CONNECTOR TERMINAL	-
50	AR11125	1	WIRING LEAD	-
51	R11058	1	BUSHING	-
52	-	1	Part 57	254MM (10") (SUB FOR R11229) (MAKE FROM TY16069 AND R32017)
53	AR11124	2	SUPPORT	-
54	R11233	2	PIN	-
55	R11209	2	SPRING	-
56	AR11123	4	CARBON BRUSH HOLDER	-
57	R11208	4	BRUSH	-
58	12M7084	4	Lock Washer	0.169"
59	37H78	4	SCREW	0.164" X 3/4", (SUB FOR R11210 OR R11255) (ALSO ORDER 12M7084)
60	AR11121	1	FRAME	-
60	AR11140	1	FRAME	-
61	R61932	1	BUSHING	(SUB FOR T11739)
62	12H303	2	Lock Washer	5/16"
63	T11655	2	BOLT	(SUB FOR 1931812)
64	30H9	1	Plug	3/4"
..	AR11138	1	STARTER MOTOR	(DELCO-REMY NO. 1113148) (SUB TY6703)
..	TY6703	1	STARTER MOTOR	(SUB FOR AR11138, AR40134 OR TY6622)
