Открытый узел

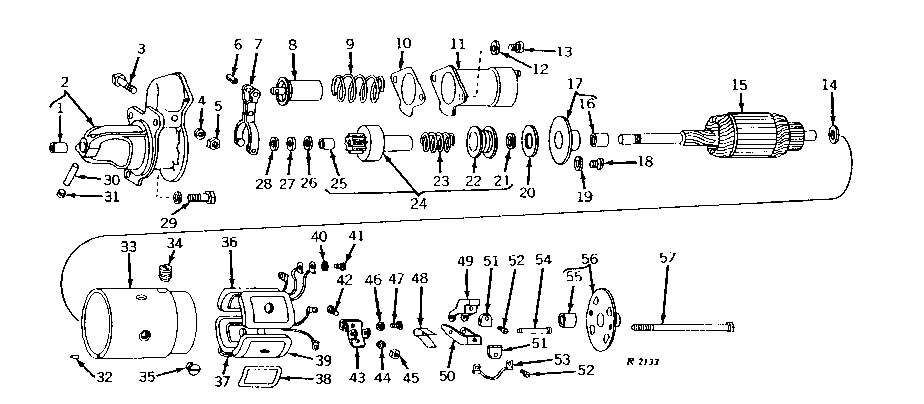

STARTER (12-VOLT) (GASOLINE) [01G15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T17987	1	BUSHING	-
2	AR11107	1	HOUSING	(NLA)
3	T11672	1	CAP SCREW	-
4	12H303	1	Lock Washer	5/16"
5	14H611	1	Nut	5/16", (SUB FOR T11682)
6	34H279	1	SPRING PIN	3/16" X 13/16"
7	T18113	1	SHIFTER	(SUB FOR T11674)
8	T11673	1	PLUNGER	(USE WITH AR11300) (SUB AT15147)
8	AT15147	1	PLUNGER	(USE WITH AR11160)
9	R81176	1	COMPRESSION SPRING	(SUB FOR T11675)
10	T17058	1	GASKET	(SUB FOR R11192)
11	AR68304	1	SOLENOID	(SUB FOR AR11109 OR R11240) (DELCO-REMY NO. 1114264 OR 1114356)
11	TY6690	1	SOLENOID	(REMANUFACTURED)
11	SE501441	1	SOLENOID	(REMANUFACTURED FOR TY6690)
12	12H302	2	Lock Washer	1/4"
13	21H1310	2	SCREW	1/4" X 1/2"
14	R11096	1	WASHER	-
15	AR11104	1	ARMATURE	-
16	820148	1	BUSHING	-
17	AR62967	1	BEARING	(SUB FOR 820149)
18	21H1298	2	Screw	0.190" X 3/8"
19	12H246	2	LOCK WASHER	0.190", (SUB FOR H23195)
20	R11095	1	WASHER	-
21	R11118	1	WIRE	-
22	R11225	1	LOCKING COLLAR	(SUB FOR 1838436) (SUB AR57094)
23	37517	1	SPRING	-
24	AR57094	1	DRIVE	(SUB FOR AR11108 OR AT15140)
25	1873796	1	BUSHING	-
26	R11116	1	SPACER	-
27	R11117	1	SNAP RING	-
28	R11080	1	WASHER	-
29	12H304	3	Lock Washer	3/8"
29	19H2552	3	CAP SCREW	3/8" X 1-1/8"
30	R40337	1	WICK	(SUB FOR R11108)
31	15H566	1	PIPE PLUG	1/8", (SUB FOR R11085)
32	R11087	1	DOWEL PIN	-
33	-	1	Part 37	(ORDER TY6691)
34	R11191	1	GROMMET	-
35	21H1280	4	SCREW	3/8" X 3/4", (SUB FOR R11097 OR T18353)
36	AR90826	1	FIELD WINDING COIL	(SUB FOR AR11106 OR AR88016)
37	AR90826	1	FIELD WINDING COIL	(SUB FOR AR11105 OR AR88016)
38	T743T	4	INSULATOR	-
39	R39857	4	SHOE	(SUB FOR AT515T)
40	12M7060	1	Washer	0.209"
41	21H1298	1	Screw	0.190" X 3/8"
42	21H1301	4	SCREW	0.190" X 1/2"
43	AT516T	2	KIT	-
44	12H246	4	LOCK WASHER	0.190"
45	14H778	4	Nut	0.190"
46	12H315	1	Lock Washer	0.164"
47	21H1292	1	SCREW	0.164" X 1/4"
48	T740T	2	SPRING	-
49	T739T	2	HOLDER	-
50	T738T	2	HOLDER	-
51	T735T	4	BRUSH	-
52	37H2	4	Screw	0.164" X 5/8", (SUB FOR T10397)
53	AT514T	2	WIRING LEAD	-
54	T736T	2	PIN FASTENER	-
55	810620	1	BUSHING	-
56	AT517T	1	FRAME	-
57	T741T	2	BOLT	-
..	AR11300	1	STARTER MOTOR	(DELCO-REMY NO. 1107785) (SUB TY6691)
..	AR11160	1	STARTER MOTOR	(DELCO-REMY NO. 1107350) (SUB TY6691)
..	TY6691	1	STARTER MOTOR	(REMANUFACTURED) (SUB FOR AR11300, AR11160 OR TY1435)

STARTER (12-VOLT) (GASOLINE) [01G15]

Нет текстового описания
