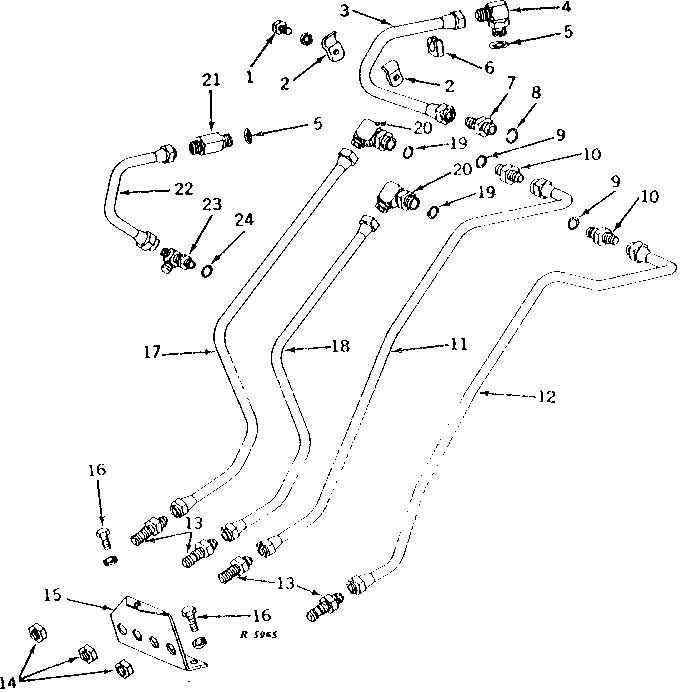

SELECTIVE CONTROL OIL LINES (VALVE HOUSINGS TO BRACKET) [02H08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	1	Lock Washer	3/8"
1	19H1936	1	Cap Screw	3/8" X 3/4"
2	R27539	2	CLAMP	-
3	AR26765	1	OIL LINE	-
4	AT32332	1	Elbow Fitting	90°, (SUB FOR AR26763)
5	R26375	2	O-Ring	-
6	R26989	1	GROMMET	(NLA)
7	R27237	1	Fitting	37° FLARE
7	R31665	1	Fitting	(PRESSURE LINE TO JUNCTION BLOCK)
8	R26375	1	O-Ring	-
8	R26906	1	O-Ring	-
9	R26448	2	O-Ring	-
10	R27212	2	Fitting	37° FLARE
11	AR26606	1	OIL LINE	FRONT R.H. INNER (NLA)
12	AR26605	1	OIL LINE	FRONT R.H. OUTER
13	R27238	1	Fitting	(B) 37° FLARE
14	R26572	1	Nut	(B)
15	R27239	1	Part Not Coded	(SUB R31643)
15	R31643	1	BRACKET	(NLA)
16	19H1936	2	Cap Screw	3/8" X 3/4"
16	12H304	2	Lock Washer	3/8"
17	AR26609	1	OIL LINE	(A) FRONT L.H. OUTER
18	AR26610	1	OIL LINE	(A) FRONT L.H. INNER
19	R26448	2	O-Ring	(A)
20	AT35121	2	Elbow Fitting	(A) 90°, (SUB FOR AR26725)
21	R28717	1	FITTING	37° FLARE
22	AR26766	1	OIL LINE	-
23	AR26767	1	TEE FITTING	-
24	R26286	1	O-Ring	-
..	AR39758	1	KIT	OIL LINE (FOR INSTALLATION OF DUAL SELECTIVE CONTROL) (NLA)

SELECTIVE CONTROL OIL LINES (VALVE HOUSINGS TO BRACKET) [02H08]
