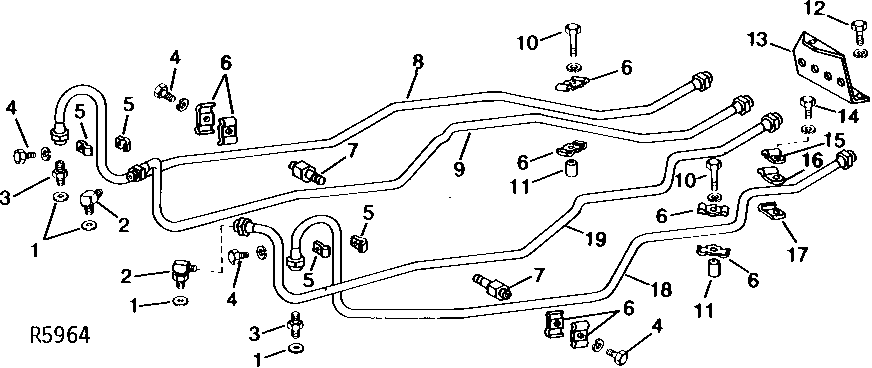

SELECTIVE CONTROL OIL LINES (BRACKET TO BREAKAWAY COUPLERS) [02H06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26448	1	O-Ring	(B)
2	AT35121	1	Elbow Fitting	(A) 90°, (SUB FOR AR26725)
3	R27212	1	Fitting	(A) 37° FLARE
4	19H1936	1	Cap Screw	(B) 3/8" X 3/4"
4	12H304	1	Lock Washer	(B) 3/8"
5	R27720	1	CLAMP	(B)
6	R27491	1	Clamp	(4 USED SINGLE SELECTIVE CONTROL) (8 USED DUAL SELECTIVE CONTROL)
7	R27679	1	SCREW	(A) (SUB R31563 AND 24H1488)
7	R31563	1	STUD	(A)
8	AR26611	1	OIL LINE	REAR, L.H., OUTER, (DUAL SELECTIVE CONTROL)
9	AR26612	1	OIL LINE	REAR, L.H., INNER, (DUAL SELECTIVE CONTROL)
10	19H1726	1	Cap Screw	(A) 3/8" X 2-1/4"
10	12H304	1	Lock Washer	(A) 3/8"
11	F2719R	1	BUSHING	(A)
12	19H1936	2	Cap Screw	3/8" X 3/4"
12	12H304	2	Lock Washer	3/8"
13	R27239	1	Part Not Coded	(SUB R31643)
13	R31643	1	BRACKET	-
14	19H1731	1	Cap Screw	(A) 3/8" X 1"
14	12H304	1	Lock Washer	(A) 3/8"
15	R27590	1	CLAMP	(A)
16	R27591	1	CLAMP	(A)
17	R27592	1	CLAMP	(A)
18	AR26607	1	OIL LINE	REAR, R.H., OUTER
19	AR26608	1	OIL LINE	REAR, R.H., INNER
..	AR39758	1	KIT	OIL LINE (FOR INSTALLATION OF DUAL SELECTIVE CONTROL)
