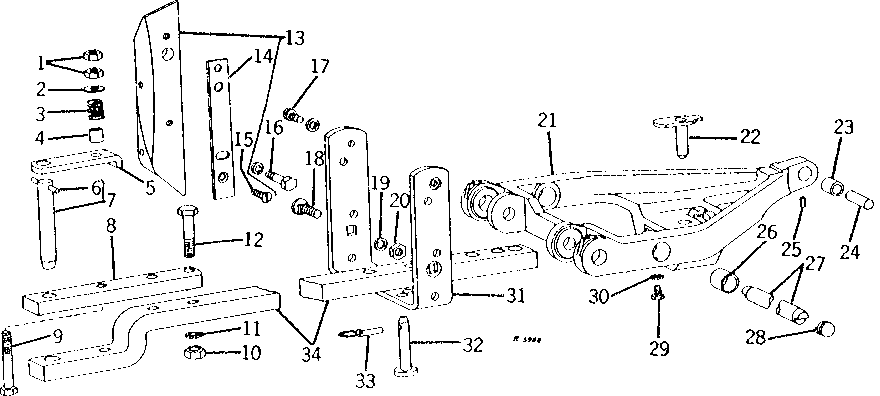

REGULAR DRAWBAR (ROW-CROP AND STANDARD) [02F22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1039	2	Nut	5/8"
2	24H1372	1	Washer	21/32" X 1-1/2" X 0.060"
3	F3541R	1	Spring	-
4	F3542R	1	Bushing	-
5	F3539R	1	Retainer	-
6	34H363	1	Spring Pin	3/8" X 4"
7	AR26462	1	PIN FASTENER	-
8	R26584	1	STRAP	-
9	19H3169	1	Cap Screw	5/8" X 4-1/4"
10	14H794	2	Nut	3/4"
11	12H236	2	Lock Washer	3/4"
12	19H2113	2	Cap Screw	3/4" X 3-1/4"
13	R26815	1	SWAY BLOCK	R.H. (SUB R32323 AND R32325)
13	AR31560	1	SWAY BLOCK	R.H. (SUB R32323 AND R32325)
13	R26816	1	SWAY BLOCK	L.H. (SUB R32324 AND R32325)
13	AR31561	1	SWAY BLOCK	L.H. (SUB R32324 AND R32325)
14	R32325	2	SPACER	(DO NOT USE WITH R26815 OR R26816)
15	19H2701	4	SCREW	1/4" X 5/8"
16	19H1820	2	Cap Screw	1/2" X 3"
16	12H301	2	Lock Washer	1/2"
17	R41015	2	SCREW	(SUB FOR R26508)
17	12H292	2	Lock Washer	1/2"
18	10H1040	2	Bolt	5/8" X 2"
19	12H294	2	Lock Washer	5/8"
20	14H1039	2	Nut	5/8"
21	AR31559	1	SUPPORT	(MARKED R26582 OR R32330) (SUB AR40402, R56728, R96420, R28575, 12H304, A147R, R28040 AND 19H1732) (SUB FOR AR26461) (TRACTOR WITH REGULAR DRAWBAR) (ON 001000-036783 USE WITH R32323, R32324 AND (2) R32325)
22	AR27599	1	PIN	-
23	R31438	1	BUSHING	(SUB FOR R27325)
24	R26503	1	DOWEL PIN	-
25	34H309	1	Spring Pin	1/4" X 5/8"
26	R26502	2	BUSHING	-
27	R33826	1	PIN	(SUB FOR R26504) (ALSO ORDER R33827)
28	R33827	2	RETAINER	(SUB FOR R27828) (ALSO ORDER R33826)
29	R40928	2	BOLT	(SUB FOR R27196)
30	12H303	2	Lock Washer	5/16"
31	R26506	1	SUPPORT	REAR
32	R26511	2	Pin Fastener	-
33	AR62151	2	Quick Lock Pin	(SUB FOR B11182) (SUB M115827)
34	R28057	1	DRAWBAR	(SUB RE20662)
34	R81576	1	DRAWBAR	(HEAVY-DUTY) (NOT DRILLED FOR STRAP)

REGULAR DRAWBAR (ROW-CROP AND STANDARD) [02F22]
