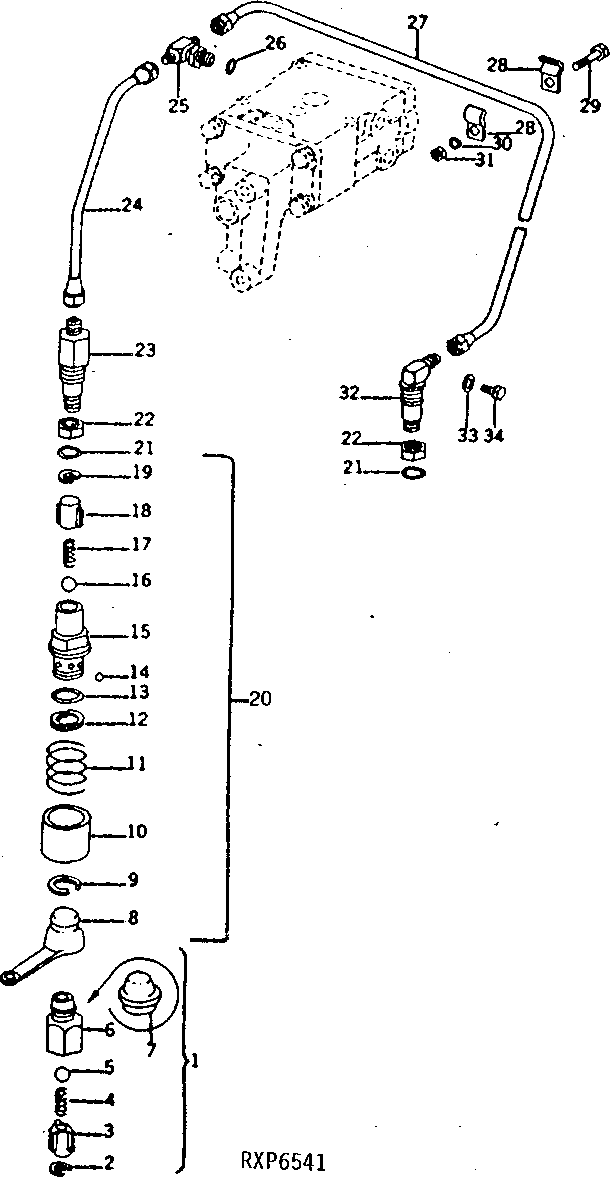

R.H. AND L.H. PARALLEL SINGLE FRONT OUTLET WITH COUPLERS (SINGLE OR DUAL SELECTIVE CONTROL) [02G17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR47643	1	BREAKAWAY COUPLER	(RETURN) (SUB AR93820)
1	AR30210	1	HYDR.QUICK COUPLER PLUG	(PRESSURE) (SUB AR93819)
2	R59633	2	WEAR RING	(SUB FOR R28204)
3	R28085	2	GUIDE	(SUB AR93819 OR AR93820, THIS APPLICATION)
4	R28084	2	SPRING	-
5	D2361R	2	Ball	13MM (1/2")
6	R27430	1	HYD. QUICK-CONNECT COUPLER	(PRESSURE) (SUB AR93819)
6	R45630	1	HYD. QUICK-CONNECT COUPLER	(RETURN) (SUB AR93820)
7	R28006	2	CAP	-
8	R32419	2	COVER	(SUB R80324)
9	R32356	2	SNAP RING	-
10	R32355	2	SLEEVE	-
11	R32354	2	SPRING	(SUB RE15361)
12	R26485	2	BACK-UP RING	-
13	R495R	2	O-Ring	-
14	400R	12	Ball	6MM (1/4")
15	R32353	2	SOCKET OUTLET	-
16	D2361R	2	Ball	13MM (1/2")
17	R28084	2	SPRING	-
18	R28085	2	GUIDE	(SUB RE15361)
19	R59633	2	WEAR RING	(SUB FOR R28204)
20	AR47331	1	HYDR.QUICK COUPLER SOCKET	(SUB RE15361)
21	R26375	2	O-Ring	-
22	14H876	2	Nut	1"
23	R39785	1	FITTING	(NLA)
24	AR30001	1	OIL LINE	SELECTIVE CONTROL VALVE TO CONTROL SUPPORT L.H. (NLA)
25	AT42939	1	Tee Fitting	(USE WITH R32410) (SUB FOR AR32667)
25	AT36465	1	Tee Fitting	(USE WITH R27584) (SUB FOR AR28997)
25	R26448	1	O-Ring	(USE WITH AR28997 OR AT36465)
26	R26375	1	O-Ring	-
27	AR30000	1	LINE	SELECTIVE CONTROL VALVE TO CONTROL SUPPORT R.H. (NLA)
28	R27720	2	CLAMP	-
29	19H1898	1	Cap Screw	1/4" X 1-1/2"
30	12H302	1	Lock Washer	1/4"
31	14H786	1	Nut	1/4"
32	AR39763	1	ELBOW FITTING	90°, (NLA)
33	24H1136	1	Washer	11/32" X 11/16" X 0.065", R.H.
34	19H2020	1	Cap Screw	5/16" X 1/2" R.H. FRONT
