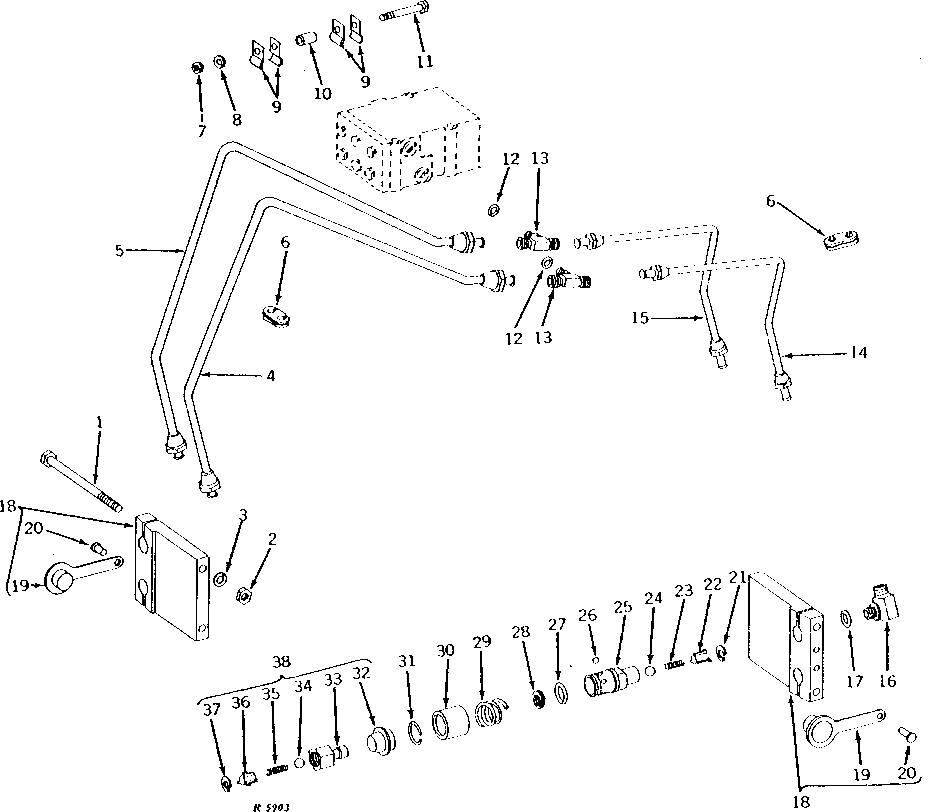

R.H. AND L.H. PARALLEL DUAL FRONT OUTLET WITH COUPLERS (SINGLE OR DUAL SELECTIVE CONTROL) [02G19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	08H4732	4	CAP SCREW	3/8" X 6-3/4"
2	14H1076	4	Nut	3/8"
3	12H304	4	Lock Washer	3/8"
4	AR31670	1	LINE	LOWER R.H.
5	AR31669	1	OIL LINE	UPPER R.H. (NLA)
6	R26418	2	GROMMET	-
7	14H786	1	Nut	1/4"
8	12H302	1	Lock Washer	1/4"
9	R27720	4	CLAMP	-
10	28H1697	1	Spacer	3/8" X .750"
11	19H2334	1	Cap Screw	1/4" X 2-1/2"
12	R26375	2	O-Ring	-
13	AT42939	2	Tee Fitting	(USE WITH R32410) (SUB FOR AR32667)
13	R26448	1	O-Ring	(USE WITH AR28997 OR AT36465)
13	AT36465	1	Tee Fitting	(USE WITH R27584) (SUB FOR AR28997)
14	AR31672	1	OIL LINE	LOWER L.H. (NLA)
15	AR31671	1	OIL LINE	UPPER L.H. (NLA)
16	AR31674	4	Fitting	90°
17	R26375	4	O-Ring	-
18	AR31673	2	BRACKET	(MARKED R32418) (NLA)
19	R32419	4	COVER	(SUB R80324)
20	A5748R	4	SCREW	(SUB 37H92)
21	R59633	4	WEAR RING	(SUB FOR R28204)
22	R28085	4	GUIDE	(SUB RE15361)
23	R28084	4	SPRING	-
24	D2361R	4	Ball	13MM (1/2")
25	R32353	4	SOCKET OUTLET	-
26	400R	24	Ball	6MM (1/4")
27	R495R	4	O-Ring	-
28	R26485	4	BACK-UP RING	-
29	R32354	4	SPRING	(SUB RE15361)
30	R32355	4	SLEEVE	-
31	R32356	4	SNAP RING	-
32	R28006	4	CAP	-
33	R27430	1	HYD. QUICK-CONNECT COUPLER	(PRESSURE) (SUB AR93819)
33	R45630	1	HYD. QUICK-CONNECT COUPLER	(RETURN) (SUB AR93820)
34	D2361R	4	Ball	13MM (1/2")
35	R28084	4	SPRING	-
36	R28085	4	GUIDE	(SUB AR93819 OR AR93820, THIS APPLICATION)
37	R59633	4	WEAR RING	(SUB FOR R28204)
38	AR30210	2	HYDR.QUICK COUPLER PLUG	(PRESSURE) (SUB AR93819)
38	AR47643	2	BREAKAWAY COUPLER	(RETURN) (SUB AR93820)

R.H. AND L.H. PARALLEL DUAL FRONT OUTLET WITH COUPLERS (SINGLE OR DUAL SELECTIVE CONTROL) [02G19]
