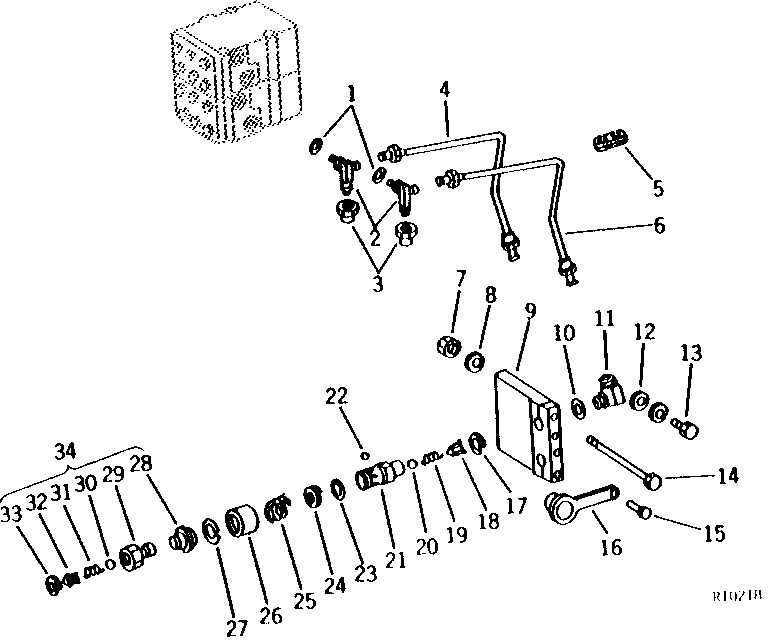

L.H. DUAL FRONT OUTLET WITH COUPLERS (DUAL SELECTIVE CONTROL) [02G23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	2	O-Ring	-
2	AR32665	2	Tee Fitting	(USE WITH R32410)
2	R26448	1	O-Ring	(USE WITH AR28997 OR AT36465)
2	AT36465	2	Tee Fitting	(USE WITH R27584) (SUB FOR AR28997)
3	R31736	2	Fitting	-
4	AR31678	1	OIL LINE	UPPER L.H. (SELECTIVE CONTROL VALVE TO FRONT COUPLER) (NLA)
5	R26418	1	GROMMET	-
6	AR31679	1	OIL LINE	LOWER L.H. (SELECTIVE CONTROL VALVE TO FRONT COUPLER) (NLA)
7	14H1076	2	Nut	3/8"
8	12H304	2	Lock Washer	3/8"
9	AR31673	1	BRACKET	(MARKED R32418) (NLA)
10	R26375	2	O-Ring	-
11	AR31674	2	Fitting	90°
12	24H1136	1	Washer	11/32" X 11/16" X 0.065"
13	19H1813	1	CAP SCREW	5/16" X 5/8"
14	08H4732	2	CAP SCREW	3/8" X 6-3/4"
15	A5748R	2	SCREW	(SUB 37H92)
16	R32419	2	COVER	(SUB R80324)
17	R59633	2	WEAR RING	(SUB FOR R28204)
18	R28085	2	GUIDE	(SUB RE15361)
19	R28084	2	SPRING	-
20	D2361R	2	Ball	13MM (1/2")
21	R32353	2	SOCKET OUTLET	-
22	400R	12	Ball	6MM (1/4")
23	R495R	2	O-Ring	-
24	R26485	2	BACK-UP RING	-
25	R32354	2	SPRING	(SUB RE15361)
26	R32355	2	SLEEVE	-
27	R32356	2	SNAP RING	-
28	R28006	2	CAP	-
29	R27430	1	HYD. QUICK-CONNECT COUPLER	(PRESSURE) (SUB AR93819)
29	R45630	1	HYD. QUICK-CONNECT COUPLER	(RETURN) (SUB AR93820)
30	D2361R	2	Ball	13MM (1/2")
31	R28084	2	SPRING	-
32	R28085	2	GUIDE	(SUB AR93819 OR AR93820, THIS APPLICATION)
33	R59633	2	WEAR RING	(SUB FOR R28204)
34	AR30210	1	HYDR.QUICK COUPLER PLUG	(PRESSURE) (SUB AR93819)
34	AR47643	1	BREAKAWAY COUPLER	(RETURN) (SUB AR93820)
