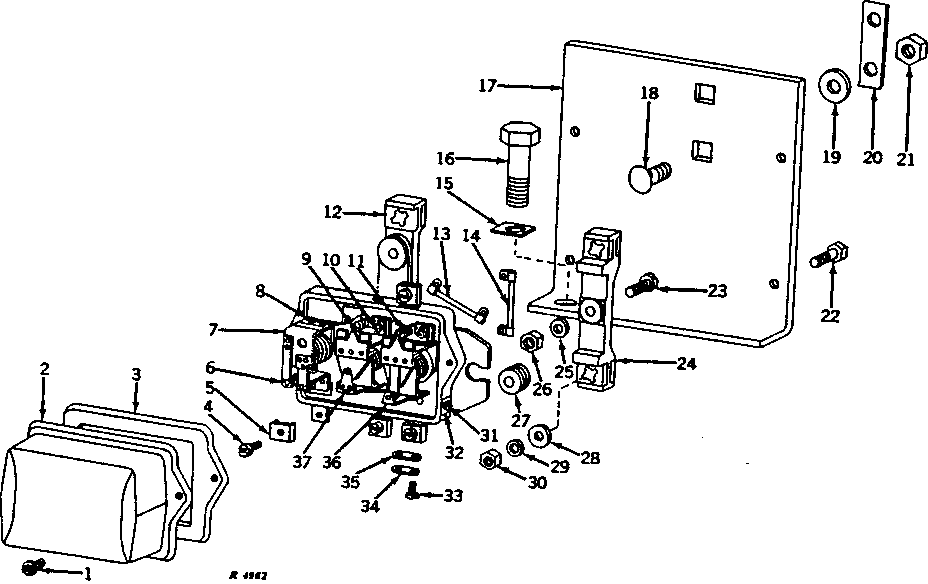

GENERATOR REGULATOR (24-VOLT) (DIESEL) [01G11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 2	(NLA)
1	37H43	2	Screw	NO. 8 X 3/8", (SUB FOR R11232)
2	AR30007	1	COVER	-
3	R11052	1	GASKET	-
4	21H1316	3	Screw	0.190" X 1/2", (SUB FOR AR11040) (USE WITH AR11008)
4	21H1316	4	Screw	0.190" X 1/2", (SUB FOR AR11040) (USE WITH AR30155)
5	R11084	3	CLIP	(USE WITH AR11008)
5	R11084	4	CLIP	(USE WITH AR30155)
6	R11111	1	SCREW	(NLA)
7	AR11033	1	ARMATURE	(NLA)
8	21H1309	2	Screw	0.138" X 1/4", (SUB FOR AT11339)
8	12H321	2	Washer	0.138"
9	R11112	1	SPRING	-
10	H24106	2	SCREW	(NLA)
11	R11054	1	SPRING	(NLA)
12	AT21632	1	PACKAGE OF PARTS	(SUB FOR AR11041) (SET OF 2)
13	AR11038	1	RESISTOR	(NLA)
14	AR11037	1	RESISTOR	(USE WITH AR11008) (NLA)
14	AR11137	1	RESISTOR	(USE WITH AR30155) (NLA)
15	-	1	Part 20	(NOT REQUIRED)
16	19H1356	1	CAP SCREW	5/8" X 1-3/4"
17	R26820	1	SUPPORT	-
18	03H1519	2	Bolt	3/8" X 1"
19	A147R	2	WASHER	-
20	R27962	1	STRAP	-
21	14H1076	2	Nut	3/8"
22	19H1791	4	Cap Screw	1/4" X 1-1/4"
23	21H1100	3	Screw	1/4" X 1"
24	AT21632	1	PACKAGE OF PARTS	(SUB FOR AR11042) (SET OF 2)
25	12H302	3	Lock Washer	1/4"
26	14H850	3	NUT	1/4"
27	AR11039	3	GROMMET	-
28	-	1	Part 33	(NOT REQUIRED)
29	12H302	4	Lock Washer	1/4"
30	14H786	4	Nut	1/4"
31	37H43	1	Screw	NO. 8 X 3/8", (USE WITH AR11008)
32	R11057	1	CLIP	(USE WITH AR11008) (NLA)
33	21H1288	2	SCREW	0.112" X 1/4", (SUB FOR R11103)
34	12H313	1	Lock Washer	0.112", (SUB FOR R11101)
35	R11102	1	INSULATOR	(NLA)
35	-	1	Part 41	(NLA)
36	AR11036	1	CONTACT	VOLTAGE (NLA)
37	AR11035	1	CONTACT	CURRENT
..	AR11008	1	REGULATOR	(DELCO-REMY NO. 1119219) (SUB AR30155)
..	AR30155	1	VOLTAGE REGULATOR	(DELCO-REMY NO. 1119282)

GENERATOR REGULATOR (24-VOLT) (DIESEL) [01G11]

Нет текстового описания
