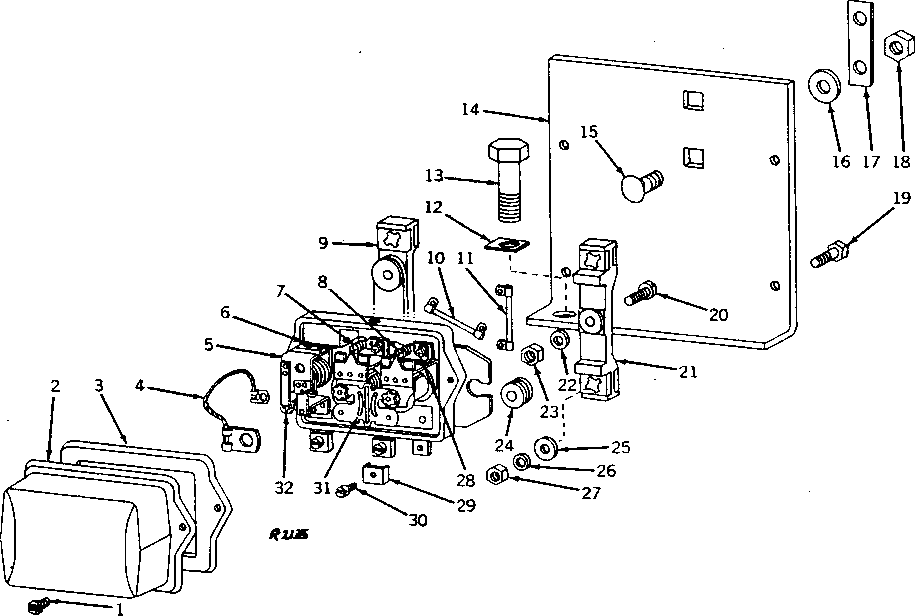

GENERATOR REGULATOR (12-VOLT) (GASOLINE AND LP-GAS) [01G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 2	(A) (NLA)
1	37H43	2	Screw	(A) NO. 8 X 3/8", (SUB FOR R11232)
2	AR30007	1	COVER	(A) (ORDER AR40170)
3	R11052	1	GASKET	(A)
4	AR11338	1	WIRING LEAD	(A)
5	AR11033	1	ARMATURE	(NLA)
6	21H1309	2	Screw	0.138" X 1/4", (SUB FOR AT11339)
6	12H321	2	Washer	0.138"
7	R11112	1	SPRING	-
8	R11190	1	SPRING	(NLA)
9	AT21632	1	PACKAGE OF PARTS	(SUB FOR AR11041) (SET OF 2)
10	AR11067	1	RESISTOR	("F" TERMINAL TO RELAY)
11	AR11337	1	RESISTOR	("F" TERMINAL TO GROUND) (NLA)
12	-	1	Part 14	(NOT REQUIRED)
13	19H1356	1	CAP SCREW	5/8" X 1-3/4"
14	R26820	1	SUPPORT	-
15	03H1519	2	Bolt	3/8" X 1"
16	A147R	2	WASHER	-
17	R27962	1	STRAP	-
18	14H1076	2	Nut	3/8"
19	19H1791	4	Cap Screw	1/4" X 1-1/4"
20	21H1100	3	Screw	1/4" X 1"
21	AT21632	1	PACKAGE OF PARTS	(SUB FOR AR11042) (SET OF 2)
22	12H302	3	Lock Washer	1/4"
23	14H850	3	NUT	1/4"
24	AR11039	3	GROMMET	-
25	-	1	Part 27	(NLR)
26	12H302	4	Lock Washer	1/4"
27	14H786	4	Nut	1/4"
28	H24106	2	SCREW	(NLA)
29	R11084	3	CLIP	(A)
30	21H1316	3	Screw	(A) 0.190" X 1/2", (SUB FOR AR11040)
31	AR11336	1	CONTACT	(NLA)
32	R11111	1	SCREW	(NLA)
..	AR11304	1	REGULATOR	(SUB AR40170) (DELCO-REMY NO. 1119135)
..	AR40170	1	VOLTAGE REGULATOR	(DELCO-REMY NO. 1118896)

GENERATOR REGULATOR (12-VOLT) (GASOLINE AND LP-GAS) [01G09]
