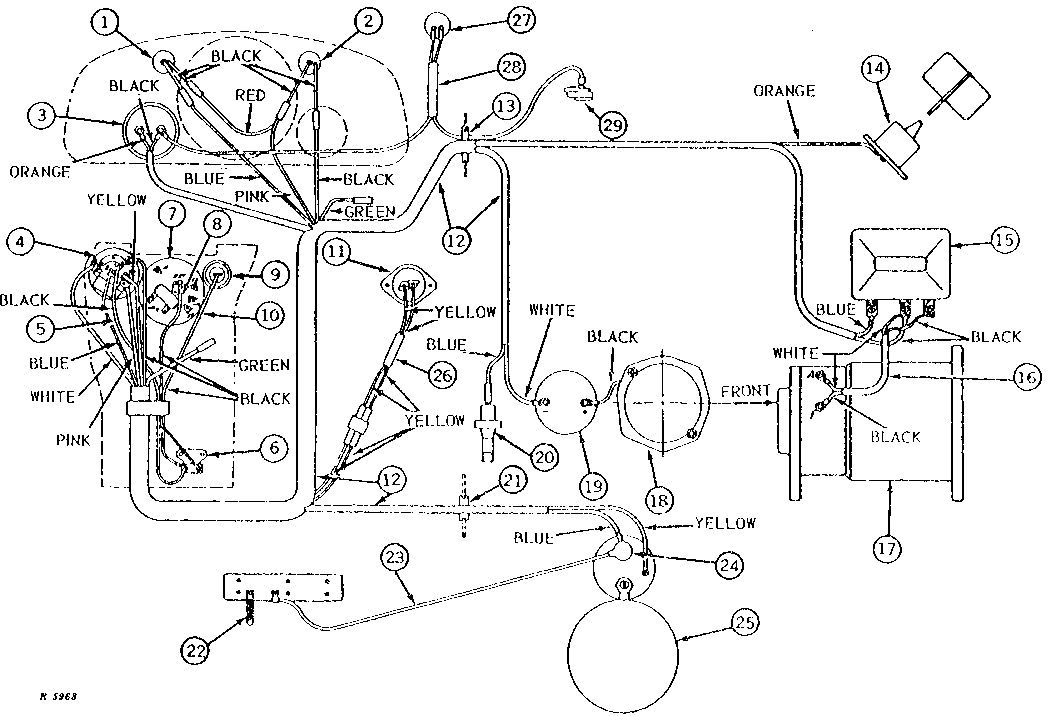

GENERATOR, IGNITION, AND STARTER WIRING (GASOLINE) [01F16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR27944	1	LAMP	(SUB AR55694, AT44165, AT48674 AND R30378)
2	AT44165	1	WIRING LEAD	(SUB FOR AR29350 OR AT14699) (ALSO ORDER AR55694, AT48673 AND R30378)
3	RE54427	1	GAUGE	(SUB FOR AR26716, AR46271, AT27153 OR R34262)
4	AR26528	1	SWITCH	(STARTER)
5	-	1	Part 5	254MM (10") (CIRCUIT BREAKER TO IGNITION AND STARTER SWITCH) (MAKE FROM R66319, R32018, R65600, T28585 AND R32027)
6	AR28403	1	CIRCUIT BREAKER	-
7	AR28401	1	SWITCH	(LIGHT)
8	-	1	Part 8	254MM (10") (CIRCUIT BREAKER TO LIGHT SWITCH) (MAKE FROM R66319, R32018, R65600, T28585 AND R32027)
9	AR48643	1	ELECTRICAL LIGHTER	(SUB FOR AR30052 OR AR34556)
10	-	1	Part 10	318MM (12-1/2") (CIRCUIT BREAKER TO CIGAR LIGHTER) (MAKE FROM R66319 AND R32018)
11	RE42069	1	STARTER MOTOR KIT	(NEUTRAL-START) (SUB FOR AR26413, THIS APPLICATION)
12	AR28808	1	WIRING HARNESS	(SUB FOR AR26576) (SUB AR47659)
13	R32555	1	Grommet	-
14	AR26434	1	SENDER	-
15	AR40170	1	VOLTAGE REGULATOR	(12-VOLT) (DELCO-REMY NO. 1118896) (SUB FOR AR11304)
16	AR26565	1	WIRING HARNESS	(GENERATOR TO REGULATOR)
17	AR33879	1	DC GENERATOR	(12-VOLT) (DELCO-REMY NO. 1100380) (SUB FOR AR11303 OR AR59295) (SUB TY1439)
17	TY1439	1	DC GENERATOR	(SUB FOR AR33879 OR AR59295) (12-VOLT)
17	SE501392	1	GENERATOR REMAN	(REMAN FOR AR11303, AR33879)
18	AR11146	1	IGNITION DISTRIBUTOR	(DELCO-REMY NO. 1112581 OR 1112624) (SUB FOR AT416T) (SUB TY15857)
18	AR47947	1	IGNITION DISTRIBUTOR	(SUB TY15857) (DELCO-REMY NO. 1112466)
18	TY15857	1	IGNITION DISTRIBUTOR	(SUB FOR AR11146 OR AR47947) (REMANUFACTURED)
19	AR46064	1	ELECTRICAL COIL	(6-VOLT) (SUB FOR AM373T)
20	AR27977	1	TOUCH SWITCH	(OIL PRESSURE)
20	AR45694	1	WIRING LEAD	(OIL PRESSURE SWITCH)
21	R26941	1	Grommet	-
22	AR26619	1	GROUND CABLE	L.H. POSITIVE, (ST)
22	24M7096	1	Washer	10.500 X 18 X 1.600 MM, (RC AND HC)
22	24M7096	1	Washer	10.500 X 18 X 1.600 MM, (ST)
22	AM348T	1	GROUND CABLE	L.H. POSITIVE, (ST)
22	19H1936	1	Cap Screw	3/8" X 3/4", (ST)
22	12H304	1	Lock Washer	3/8", (ST)
22	14H1076	1	Nut	3/8", (ST)
22	AR26619	1	GROUND CABLE	L.H. POSITIVE, (RC AND HC)
23	19H2038	1	Cap Screw	3/8" X 1/2"
23	19H2479	1	Cap Screw	1/4" X 3/8", (ST)
23	R28133	1	CLIP	(ST) (NLA)
23	12H304	1	Lock Washer	3/8"
23	R183R	1	CLIP	-
23	AR27490	1	CABLE	L.H. NEGATIVE, (ST)
23	AR28950	1	BATTERY CABLE	L.H. NEGATIVE, (ST)
23	AR28950	1	BATTERY CABLE	L.H. NEGATIVE, (RC AND HC)
24	R30964	1	Cover	(SUB FOR A3082R)
25	AR11160	1	STARTER MOTOR	(12-VOLT) (DELCO-REMY NO. 1107350) (SUB FOR AR11300) (SUB TY6691)
25	TY6691	1	STARTER MOTOR	(SUB FOR AR11300, AR11160 OR TY1435) (CONTAINS RE39838) (REMANUFACTURED)
26	AR28921	1	WIRING HARNESS	(SWITCH TO MAIN HARNESS)
27	AR21823	1	SWITCH	(HORN)
28	R34702	1	WIRING HARNESS	(SUB FOR AR30415)
29	AT39043	1	High Note Horn	(LOW NOTE) (12-VOLT) (SUB FOR AR11308 OR R11276)
..	R44302	1	Tie Band	-
..	RE260760	1	IGNITION	IGNITION CONVERSION KIT (GASOLINE)
